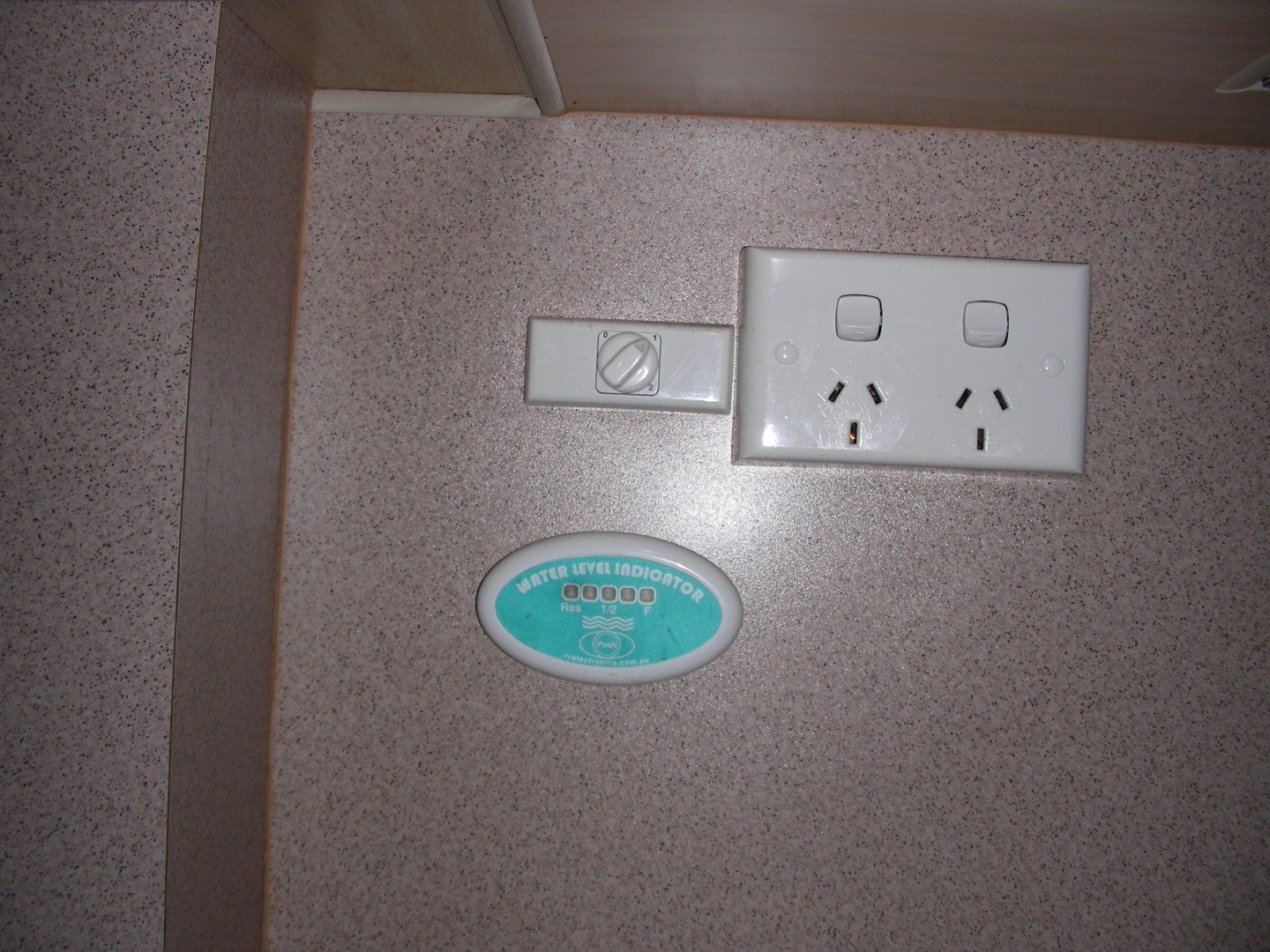

observe the switch to the left of the 240v power plugs and above the water level indicator, this seems to effect only the 12v power on 0 there is no 12v power but there is 240v, on 1 there is 12v as well as 240v, on 2 there is only 240v, I am wondering if the 2 setting may activate the 12v to the 3way fridge while traveling?
Any input would be welcome.
Smith
-- Edited by Smith on Friday 20th of December 2019 12:03:30 PM
On our old van, made the same manufacturer 0 = no 12v, 1 = 12v from car & 2 = 12v from van battery
Smith said
08:12 AM Dec 21, 2019
Thank you Bill that is very helpful
Smith
Smith said
09:07 AM Dec 21, 2019
I assume that the 3way fridge is wired to run only from the car ? unfortunately the fridge has no indicator to tell if it is running except on gas mode. Nor does the fridge have an internal light. I will have a look at the wiring if I still cannot figure it out I will take it to an auto electrician.
I changed it to a separate anderson plug with heavier wiring as it didn't work very well through 7 pin plug.
The 12 v switch mentioned initial post was always left on 2
-- Edited by Bill B on Saturday 21st of December 2019 11:58:49 AM
