Wow Peter thanks for the quick response, greatly appreciated.
Jaahn said
01:22 PM Oct 15, 2020
Hi
That appears to be a socket for a Merit type plug. Not a cigarette lighter type plug.
They are a much better holding type that do not fall out. Available commonly at the usual places.
Jaahn
-- Edited by Jaahn on Thursday 15th of October 2020 01:25:32 PM
Peter_n_Margaret said
02:49 PM Oct 15, 2020
+ve on the inside, -ve on the outside. Cheers, Peter
Your turn Jaahn.
-- Edited by Peter_n_Margaret on Thursday 15th of October 2020 02:51:49 PM
Warren-Pat_01 said
05:00 PM Oct 15, 2020
Don't try carrying high currents (over 5A) through them as the plastic insulation will melt. Check in the Jaycar Electronics catalogue for specs.
LED lighting, etc is fine.
Happy camping (& happy looking though the various aspects of this forum, some interesting, useful stuff, some humourous ).
Peter_n_Margaret said
05:51 PM Oct 15, 2020
Warren-Pat_01 wrote:
Don't try carrying high currents (over 5A) through them as the plastic insulation will melt. Check in the Jaycar Electronics catalogue for specs. LED lighting, etc is fine.
Merit type connectors are fast becoming the new standard in automotive power connectors. In fact, they have been used in some European bikes and cars for several years and are ideal when size and reliability of connection are important. Smaller in size than existing cigarette lighter connectors, they also have the advantage of a superior rugged construction and higher current carrying capability.
Cheers,
Peter
Tony LEE said
07:10 AM Oct 16, 2020
Trouble is there is no compatability between those sockets and the normal cigar lighter plugs that are ubiquitous.
As for "fast becoming a standard in European...", I have a near new European motorhome and it has the normal cigar lighter sockets
-- Edited by Tony LEE on Friday 16th of October 2020 07:13:33 AM
Aus-Kiwi said
08:35 AM Oct 16, 2020
For generator or lead . Na Pete is right . Its for low load appliances. Phone, lap top, light charger Etc I fi d these type better than lighter plugs as they tend to work There way Out with road movement .
-- Edited by Aus-Kiwi on Friday 16th of October 2020 08:37:58 AM
Jaahn said
08:45 AM Oct 16, 2020
Warren-Pat_01 wrote:
Don't try carrying high currents (over 5A) through them as the plastic insulation will melt. Check in the Jaycar Electronics catalogue for specs. LED lighting, etc is fine.
Happy camping (& happy looking though the various aspects of this forum, some interesting, useful stuff, some humourous ).
Hi
My comments on these 'new' merit plugs. They certainly clip in to the socket well and I had observed them in European vehicles. So I gave them a go some years back. I had problems with them using modest power items. Indeed I chased a problem with my fridge for some time before finding the merit plug itself was the problem. Instead of having a solid brass connection from the wire to the prong as you would expect it was actually pressed together inside and had burnt a bit to give an intermittent contact. I actually cut the plug open to find that.
So I have 'gone off' them now. I had a couple of brands so I cannot say exactly what brand that problem was but all well know brands. Indeed I also found some of the sockets which have an aluminium body are also unsatisfactory as they corrode in contact with brass and electricity . As said I have not found them as good as promised but if I found a well made brand with good brass socket and good plug I would consider them again.
Some of the better brand ciggy sockets have two spiral grooves to hold the plug side spring contacts so they are held well and do not fall out. I have converted to them now. I hate doing the same job twice.
Jaahn
-- Edited by Jaahn on Friday 16th of October 2020 09:04:55 AM
ShortNorth said
10:58 PM Oct 16, 2020
All the above reply's are wrong - it is NOT an OUTPUT socket - it is the INPUT socket for the 12v element of the Avan's refrigerator. Avan wire the 12V element of the fridge to this socket on the front near the drawbar - however, they do not wire it into the van's battery, they rely on the van owner fitting a powered 'jumper lead' from the tow car to this socket to be able to run the fridge on 12v while you are driving.
Avan state the fridge runs on gas/240v/12v, but in reality only runs on gas or 240v, as 95% of the Avans out there don't use this socket. Anyway running the fridge on 12v is pretty much useless, as it only maintains the temperature you started off with, it cannot cool a fridge from ambient to required refrigeration temperature. This socket is really way to light as the current required to run the Avan fridge on 12v is around 18 amps 12v DC.
I cool my fridge overnight on 240v before leaving next morning, then run for around 2-3 hours max to our camp site, and then immediately plug back into 240v to bring the temperature back to normal. In the more than 8 years I've had my Aliner I have never run the fridge on gas, only 240v at powered camp sites.
Jaahn said
12:32 PM Oct 18, 2020
Hi ShortNorth
Well thank you for giving the correct specific answer for nictoria65. I have never seen that on an Avan so that is a learning experience.
Jaahn
Peter_n_Margaret said
01:07 PM Oct 18, 2020
I suggest that using a Merit socket as a power inlet is inappropriate.
It means that the powered exposed lead terminal is live and that would cause a significant risk of short circuit.
Cheers,
Peter
Mamil said
01:33 PM Oct 18, 2020
Peter_n_Margaret wrote:
I suggest that using a Merit socket as a power inlet is inappropriate. It means that the powered exposed lead terminal is live and that would cause a significant risk of short circuit. Cheers, Peter
Agree, a 50A Anderson plug would be more suitable in that application, both in terms of current handling capacity, and protecting live terminals. TrailerVision do some nice waterproof mounts for Andersons which can be bought from Jaycar and elsewhere...
Trouble is there is no compatability between those sockets and the normal cigar lighter plugs that are ubiquitous.

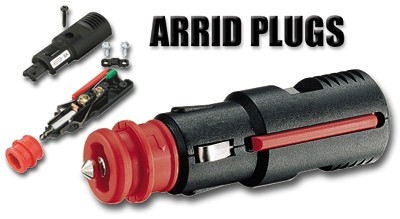

Tony, I've changed all my 'cigar lighter' plugs for this type, which will fit both traditional cigar sockets, or if you remove the red plastic bit on the tip, merit sockets. Not cheap, but good quality German made plug and means you can plug 12V accessories into either type of socket. I bought mine from here (no interest, just a happy customer)... https://12volt.com.au/

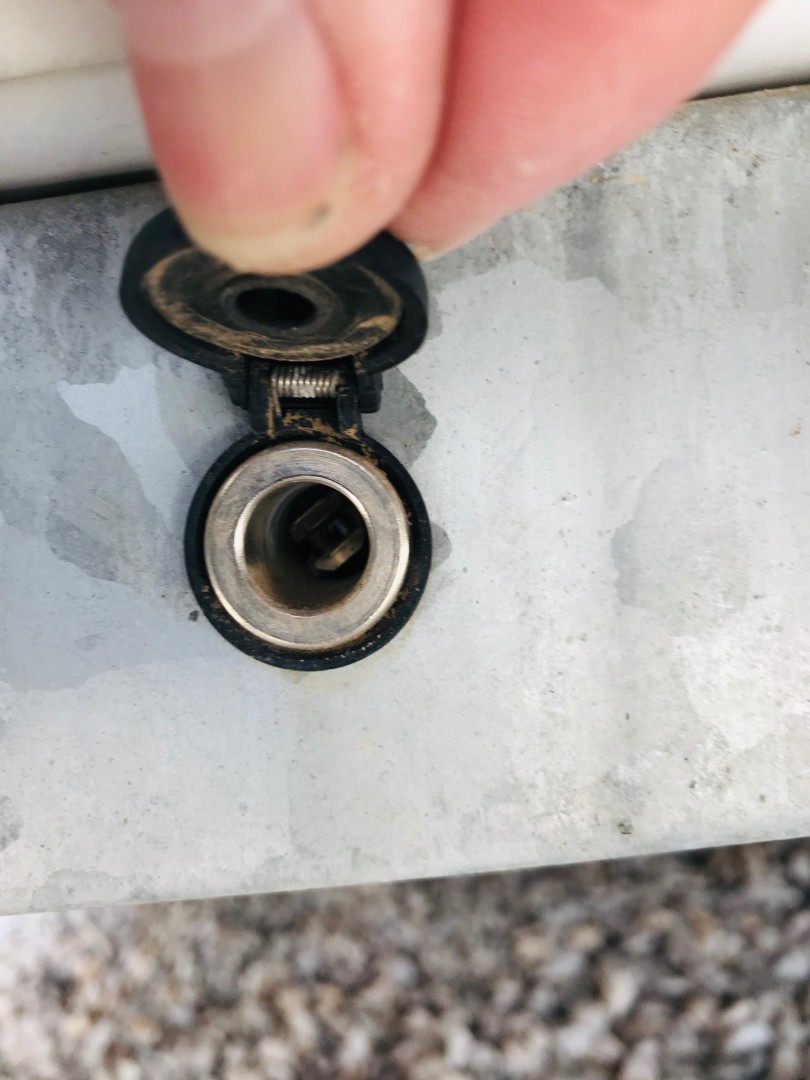

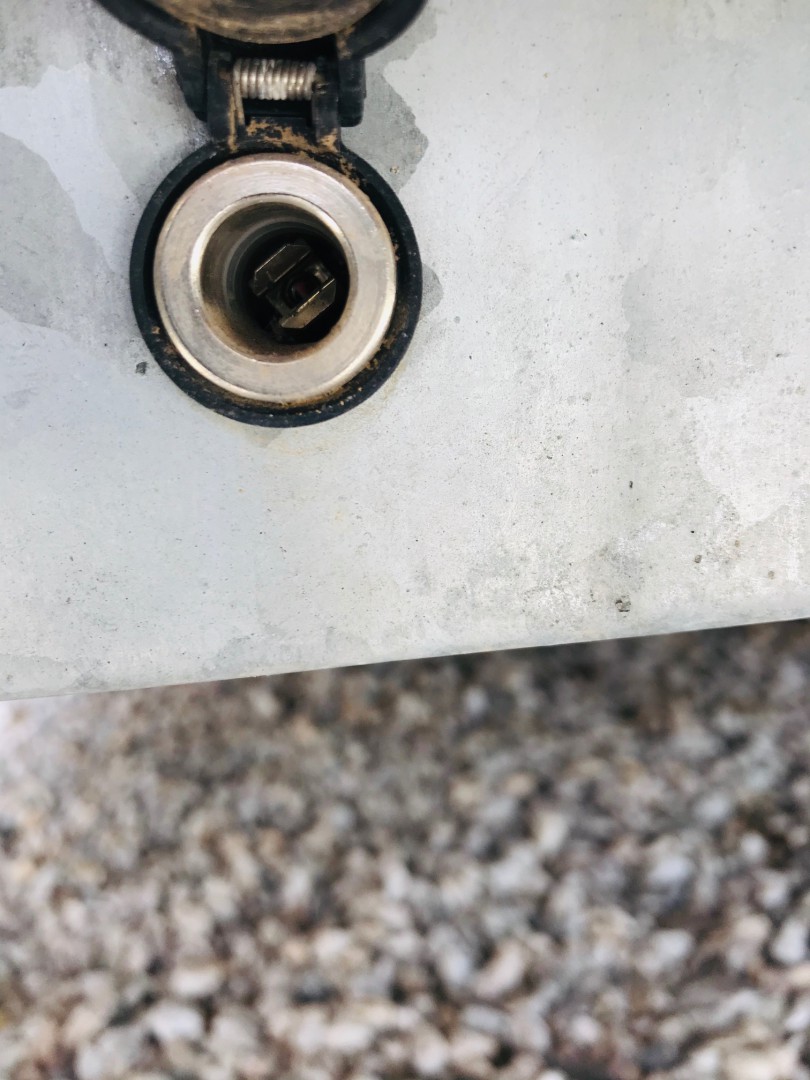

Hi all, we purchased an Avan camper and are not sure what this plug is for? Cheers Jim and Toni.
