Most caravans, it appears, are fitted with a short flexible whip antenna for their radios, usually roof mounted, these antennas are very poor performers at both AM and FM frequencies.
I considered replacing the one on my van with a better antenna but decided the work involved was too much.
Instead I've constructed an "add on" antenna extender, it is very simple and consists of a plastic tube, adhesive tape, a piece of galvanised wire and 10m or more (20m is good) of electrical wire.
The plastic tube should be about 150mm long by up to 20mm diameter. Almost anything will do but it must not contain carbon, to check this put the plastic tube and a glass of water into the microwave and set it to high for 30 seconds, if the tube warms up at all discard it and try something else.
Pick a point about 1.5m from one end of the electrical wire and starting here wrap the electrical wire tightly and with very close turns about 15 times around the plastic tube - do not overlap any turns. Fix it firmly in place with the adhesive tape.
The wire may be of any type of even different types joined together, the longer the better.
The tube should now have about 1.5m of wire at one end and, if you used 20m, about 18.5m at the other end.

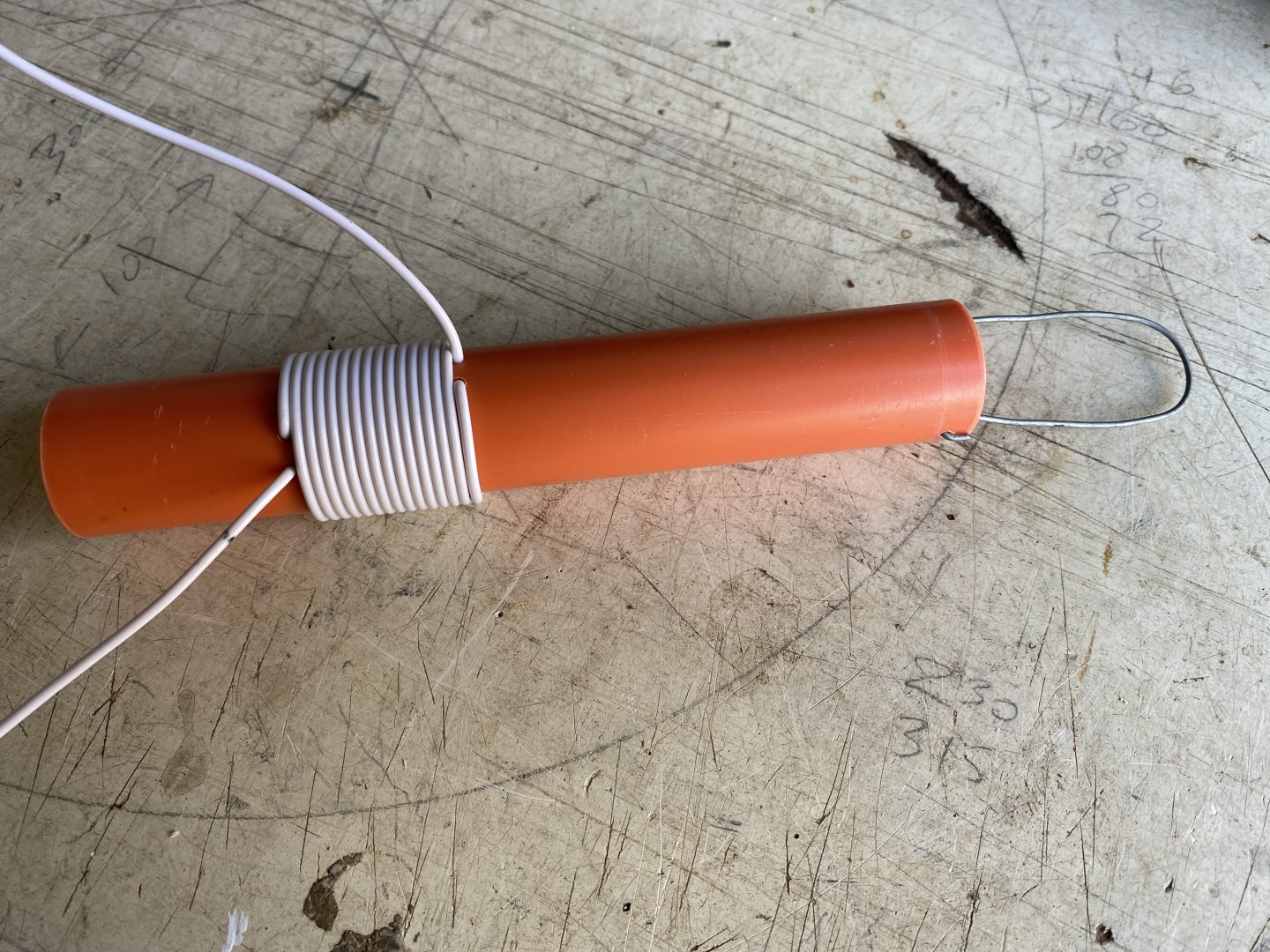

Next bend the galvanised wire and tape it to either end of the tube, see photograph. This is simply a holding loop.
Now the fun part :)
Using a fishing rod or long stick with a hook lower the tube over the antenna on the caravan roof - this is not as bad as it sounds and usually takes me no more than a minute or two.
Finally: leave the short (1.5m) piece of electrical wire where it happened to land but take the long piece out to its full extent and tie it off as high as possible to a tree or the like. It doesn't matter if the wire goes through branches or round corners it will still work.
What happens radio wise is the wire acts as a radio antenna and the coils on the plastic tube act as a transformer and couple the signal picked up by the wire into the original caravan antenna. It works well.
Mine uses 20m of wire and turns totally unreadable stations into easily readable ones and poor stations into good ones. I guess that it adds about 6 'S' points if that means anything to you.
This device could also be used with a car antenna.
If you make one please let us know how it works for you.
Maybe i am lazy, but i just use an app on my phone to listen to my favourite radio stations?, needs phone reception to do that though.
iana said
11:37 AM May 2, 2021
Now that's a good idea, especially if one is wanting to pick up bush fire up-dates.
Radar said
12:06 PM May 2, 2021
While you have a bit of time on hands, could work out how you can improve a television antenna on a caravan.
We have a figure 8 type thing and we only watch British tv shows if that helps in the design.
i love Sandra in New Tricks, the rest of the week don't matter.
Possum3 said
01:11 PM May 2, 2021
Mike this interests me as I have very poor radio reception in NSW highlands - should the cable be insulated or would plain copper (Earth) strand be best? - what size wire/strand would be best?
The windings on the plastic tube *must* be insulated but otherwise the rest of the wire may be anything from fence wire upwards. Copper wire works best (well... gold really :) ) but anything will do. This is a bit on the light side but will work well:
If you are considering a home installation then a dipole antenna is a better way to go although a little more complicated and expensive.
With radio reception (and Tx) it is *all* about the antenna.
Possum3 said
02:33 PM May 2, 2021
Thanks Mike - Yes I have some rolls of 13 x 0.12 so I'll give it a go.
Di Pole requires too much input on radio frequency/s - I attempted one a few year ago but it wasn't very good. On our block radio is patchy at best - No car radios work - Although we are at 800 meters elevation (Abercrombie headwaters) there are too many higher mountains all around us -
Santa said
06:12 PM May 2, 2021
Evening Mike.
I've been doing similar for years, a roll of wire from Jaycar, attach the end to antenna, I use an alligator clip, then run the wire out as far as possible and throw the roll over a tree limb or similar, drags in lots of previously unreadable stations.
Just take care I don't run it where a passer by can garrote themselves, normally not a problem as we normally free camp in remote area's as no one else around.
Mike Harding said
04:29 AM May 3, 2021
Santa wrote:I've been doing similar for years, a roll of wire from Jaycar, attach the end to antenna, I use an alligator clip
Most caravan antennas seem to be short (300mm) whips with a rubberised coating so the alligator clip won't be able to make a direct electrical connection, it will still work but not too well.
Santa said
09:12 AM May 3, 2021
Mike Harding wrote:
Santa wrote:I've been doing similar for years, a roll of wire from Jaycar, attach the end to antenna, I use an alligator clip
Most caravan antennas seem to be short (300mm) whips with a rubberised coating so the alligator clip won't be able to make a direct electrical connection, it will still work but not too well.
Your right, ours is a short rubber deal, pretty ordinary.
Will save your recipe and make one up before our next trip, appreciate the info, poor AM reception is always a problem in remote area's.
markf said
10:51 AM May 3, 2021
Jeez Mike, that's a bit sophisticated . Using a coil former and tape, etc. I use about 25 metres of wire with an alligator clip on one end. Connect the clip ( lower end of the coil ) to a bit of the van frame, wrap about 15 turns around the rubber ducky and secure the top of the coil with a knot and sling the rest in a tree.
I'm a big fan of the "wire in a tree" type of antenna. Easily transported, light and compact and easily erected. All that's needed is a small, home brew Z-match a counterpoise of about the right length and I'm on the air...
Back to the original subject, make the "tree end" as long as practicable and get it as high as you can.
Mike Harding said
02:49 PM May 3, 2021
markf wrote:
Jeez Mike, that's a bit sophisticated .
Nothing but the best for my friends on this forum Mark! :)
Indeed; "wire in the sky" generally makes a good antenna - I use a 12m Spiderbeam (portable tree) and an 80m off centre fed dipole with a bit of a twist in that I use 300R TV ribbon to couple the arms to a 4:1 balun at the base of the Spiderbeam. It works very well on all HF bands.
gdayjr said
09:45 AM May 5, 2021
Mike Harding wrote:
markf wrote:
Jeez Mike, that's a bit sophisticated .
Nothing but the best for my friends on this forum Mark! :)
Indeed; "wire in the sky" generally makes a good antenna - I use a 12m Spiderbeam (portable tree) and an 80m off centre fed dipole with a bit of a twist in that I use 300R TV ribbon to couple the arms to a 4:1 balun at the base of the Spiderbeam. It works very well on all HF bands.
I have no idea what all that means.
I just use the radio app on my phone! If i can't get phone reception i don't stress.
There are always, podcasts, and a gazillion songs on my phone sd card, and computer etc.
Live radio is always usefull, but i certainly do not intend spending any time or money trying to use whatever that stuff above is.
KISS.
Keep It Simple Stupid, thats how i do it.
KevinJ said
11:12 AM Aug 23, 2022
Hi Mike,
I tried this out on my recent trip and it definitely helped. Unfortunately, I could not get the cable vertically enough nor high enough to make a big difference. I was a bit too far from a tree and there were not many trees at the free camps I used. I have an idea how to overcome the height problem on my next trip though. I managed to pick up a couple of extra stations on the AM band and it also improved the clarity of some of the other AM stations. It made no difference on the FM band though I believe that AM loves a long aerial and FM needs a specific length aerial. You can advise better on my assumption. I have attached a pic of the cable I used and one of the extender I made. I did not need tape as I drilled a couple of holes top and bottom to thread the cable through which kept it in place. I used a fishing rod to lift it into place and again to lift it down. All very easily. As they say in Mythbusters, this is "Confirmed".
-- Edited by KevinJ on Tuesday 23rd of August 2022 11:32:25 AM
Thanks for letting me know and I'm pleased it worked for you.
To get antenna wires as high as possible I tie some light nylon string to the end of the wire (4m or 5m) and then tie an old socket (socket set type) of around 18mm size to the string. Then holding the string about 300mm from the socket I hurl it into the tree. A socket is an ideal weight as it's heavy, has a hole through it and being essentially round doesn't get caught up in branches. And when you're done just untie the socket and the wire usually falls down.
This antenna extension will tend to be more effective with the low frequency AM stations but it should help marginal FM stations too.
KevinJ said
04:30 PM Aug 23, 2022
Yes, I had exactly the same in mind though rather than a socket, it will be something I don't mind losing if something goes wrong.
-- Edited by KevinJ on Tuesday 23rd of August 2022 04:30:56 PM
