Have a 110 amph Lithium Battery that has either gone flat or is kaput.
Am in Adelaide for a few weeks wondering if anybody has a Lithium charger they would be willing to put my battery on.
I will purchase a lithium charger if battery charges.
Have tried on my Projecta charger on Gel setting but charger flashes red and will not charge.
Doddo.
Onedodger said
01:40 PM Sep 30, 2021
Some Lithium battery packs have a safe mode they go into when discharged very low. I believe that you can wake the battery back up but first you must unhook all charging devises then if you hook portable solar to it and once it starts charging again hook your Projecta back up then unhook the solar and it will continue to charge.
I read this somewhere however it may be worth a try, perhaps you can google this and learn more or another poster may know.
-- Edited by Onedodger on Thursday 30th of September 2021 01:42:56 PM
Peter_n_Margaret said
03:47 PM Sep 30, 2021
That will depend entirely on the particular BMS, and there are hundreds of different ones.
Any battery charger that delivers the appropriate voltage profiles (or is user configurable) is suitable for charging lithium batteries.
I suggest you consult the supplier.
Cheers,
Peter
peatop said
06:07 PM Oct 1, 2021
Peter_n_Margaret wrote:
That will depend entirely on the particular BMS, and there are hundreds of different ones. Any battery charger that delivers the appropriate voltage profiles (or is user configurable) is suitable for charging lithium batteries. I suggest you consult the supplier. Cheers, Peter
This is always the best option, if you don't have the user manual for the battery, as suggested all BMS's should disconnect if the battery goes to low, many turn back on by themselves, however some don't, some just require you to disconnect the battery for a minute then reconnect and charge while some require you press a button on the battery after it's disconnected.
This would all be explained in a manual, by the supplier or you could google/youtube it.
Doddo said
02:56 PM Oct 4, 2021
Have had battery on lithium charger for 24hrs.Went through cycle and showed in storage mode.
Disconnected charger and checked voltage which showed 10.1 v.
My impression is battery is kaput.
Doddo.
Tony Bev said
04:37 PM Oct 4, 2021
Hi Doddo
It would be good to have the brand name of the battery, and how long you had it
It may be useful information, for anyone researching that brand
Doddo said
07:34 PM Oct 4, 2021
Brand name is Power Lithium.
It was in the van when we purchased it it in Nov 2020
Have sent a message to previous owner when it was purchased as yet no reply. There is no puchase date on battery.
Have travelled some rough roads since purchase .
Doddo
peatop said
09:51 PM Oct 4, 2021
can you post a photo of the battery and do you have any documents for it?
Whenarewethere said
10:14 PM Oct 4, 2021
Pop it on the scales. We should be able to tell you if it should go in the bin.
Doddo said
03:19 PM Oct 7, 2021
No documentation will post a pick later
Battery wieghs 13.2 Kgs
Mike196 said
03:29 PM Oct 7, 2021
G'Day Doddo,
Have a chat to House of 12V, they should be able to help you out.
Regards,
Whenarewethere said
03:36 PM Oct 7, 2021
A Victron 100AH lithium battery is 15kg. So 110AH would be about 16.5kg.
Your battery is about 80% of the weight. So something is missing.
Before you bin it you may as well open it up & see if there is anything you can do & for the benefit of everyone so we don't get ripped off, post some internal photos in the teardown thread.
A Victron 100AH lithium battery is 15kg. So 110AH would be about 16.5kg.
Your battery is about 80% of the weight. So something is missing.
Before you bin it you may as well open it up & see if there is anything you can do & for the benefit of everyone so we don't get ripped off, post some internal photos in the teardown thread.
I was going to say 15kg seems on the heavy side but if it has winston or similar then yeah that's probably about right, but the weight does not really reflect the quality, you can have a good quality battery that weighs not much more than 10 or 11 kg, my 105Ah cells from China only weigh just under 2kg each so under 8 kg for the 4 so add 3kg for a case wire and BMS and it's still only 11kg.
I was also going to suggest to cut the top off, but I would never recommend anyone doing so that might not be familiar with the safety aspect
My guess is it's made with 28/+ cells so either some spot welds have broken, dead cells or BMS, given it sitting at 10.1v thats classed as 100% discharged, but if the BMS is faulty then it could be any voltage upto 100% full, but either way if care was taken getting the top off, it could be easily fixed and then put into another case. I recently broke open an old laptop battery that wouldn't hold a charge, only to find the batteries in perfect condition once charged on my 4 cell charger, I assume the BMS was fffff broken.
Whenarewethere said
06:09 AM Oct 8, 2021
I believe that a lot of these batteries using 18650 cells are using C grade cells to be able to sell the battery at a price point.
peatop said
12:56 PM Oct 8, 2021
Whenarewethere wrote:
I believe that a lot of these batteries using 18650 cells are using C grade cells to be able to sell the battery at a price point.
It's not just 18650's they use any cylindrical cell they can get cheap enough to make up the voltage and Ah but some or many don't even come close to the specified capacity, all to often the BMS isn't up to the job either and the input and output is well below what you would expect, then you have the actual assembly done in a sweat shops in China where quality is not regulated, all this adds up to a battery that should not be sold here in Aust.
A quote from someone on diysolar "It seems that ebay and aliexpress is just a dumping ground for products that don't meet the intended buyer quality control standards" While I think this is true, I think that it's the people who buy from these sellers that are the ones that promote the sale of these down graded items, But also this is also a general overview of both companies (good eggs in a bad basket) I wonder how many people who buy products from anywhere test them once they receive them? or even know how to test them.
I buy from both of these online shops, and on many occasions have asked for refunds, I figure why should I pay a high price for something from an Aust online store if I can buy it much cheaper from the same place they do in China lol
Ram Man said
10:33 AM Oct 9, 2021
Dude,
It need s a kick start, the supplier should be able to do thing and don't charge it set to Gel unless the Charge states to use that setting.
I am pretty certain a battery Charger on the market will have the feature required.
bobsa said
01:57 PM Oct 9, 2021
Ho Doddo . There is a bloke in Mannum about 100km from Adelaide that specializes in lithium systems he would be able to help you . He was on the forum some one may remember his name and contact details.. or google Mannum battery systems
Doddo said
12:55 PM Oct 10, 2021
Thanks all I am going to Mannum next w/end so will look him up.I have a mate who lives there he may know him.
I do not feel comfortable cutting top off.Previous owner has not got back to me so dont know age of battery
Will post result if I can locate Terry.
Doddo
Doddo said
11:14 AM Oct 11, 2021
Thank you will give him a call going to spend a few days in Mannum
Doddo said
11:34 AM Oct 11, 2021

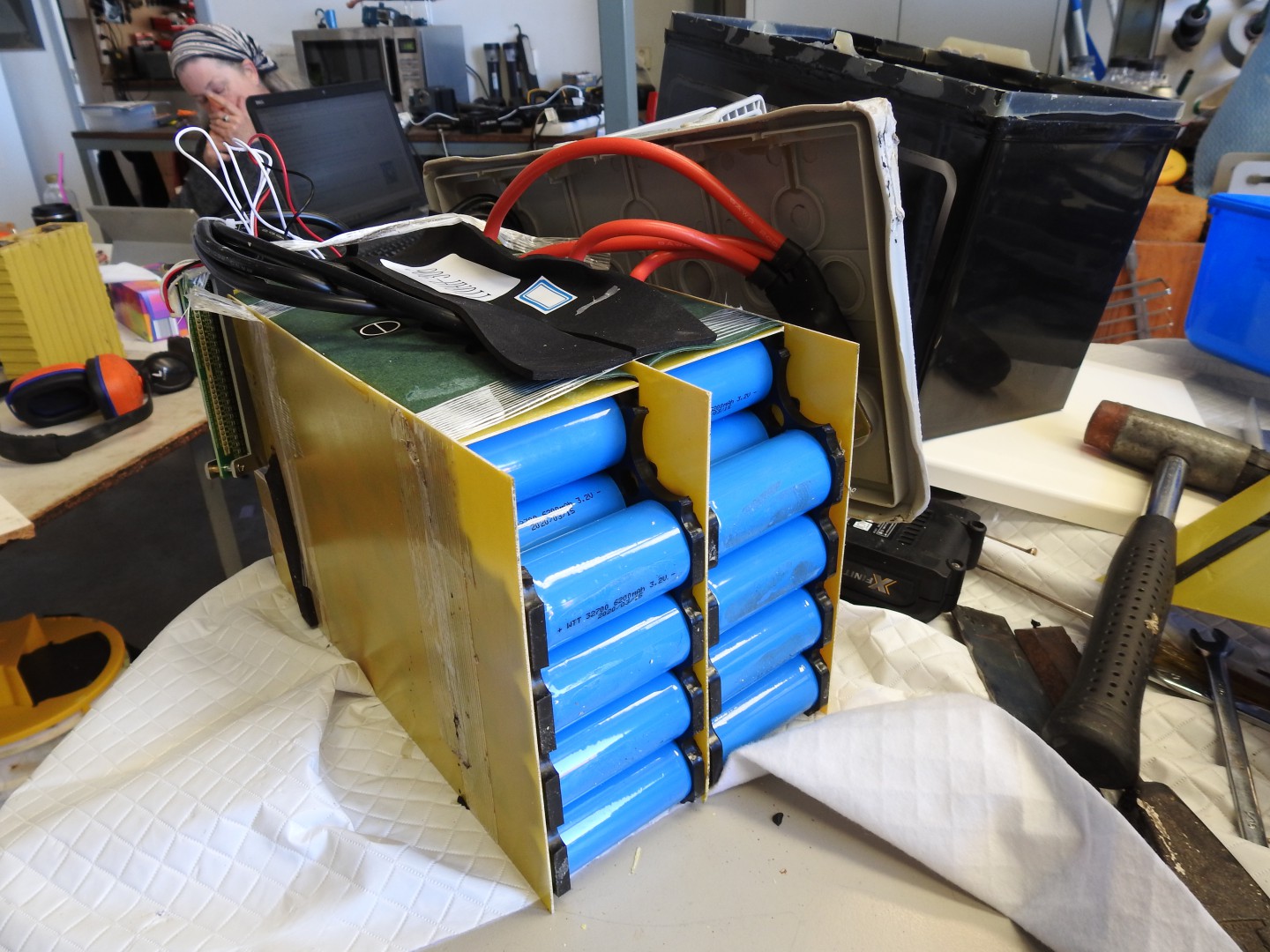

Photos Attached
-- Edited by Doddo on Monday 11th of October 2021 11:37:16 AM
Suggest you phone before calling in as he is extremely busy. Regards, Ian
Hmm Ian I never thought is was a good idea to put that information on a public forum for anyone.
And indeed that person has been banned on this forum. So advertising for him is inappropriate.
"Status
Banned"
Jaahn
nomadz said
09:41 PM Oct 11, 2021
Gday Jaahn,
information readily available from quick check of the internet. Cant get much more public than that!
I have utilised Terrys expertise over the past 9 years and would consider my post as helping a fellow forum member with information he may not have had.
I cant see how my post could possibly be construed as advertising.
As I have mentioned on other forums, (and happy to do so here) Terrys banning, for whatever reason, is the forums loss.
Regards,
Ian
Whenarewethere said
09:52 PM Oct 11, 2021
It is inappropriate to post someone's contact details regardless of the situation.
Send a PM.
Whenarewethere said
11:03 PM Oct 11, 2021
26650 cells 4S35P
Doddo said
08:54 PM Oct 22, 2021
Got in touch with Terry and he was extremly helpfull. He tried a few different things over the w/end to bring battery back to life but it was kaput. My thanks to him if i am in the area with battery problems will seek him out again. Doddo.
-- Edited by Doddo on Friday 22nd of October 2021 08:57:02 PM
Thank you for putting in the effort and providing feedback. Could you add some information to the Following thread so there is some information in one location.
A bugger that you have to replace the battery so soon.
Jaahn said
02:15 PM Oct 23, 2021
Hi Doddo
Thanks for giving us a reply, and posting those pics, even if it was not good for you As suspected that battery is composed of lots of small round cells assembled in series/parallel to give the capacity and voltage to look like what I would call a proper battery. I would not be happy to find I had that, after I shelled out good money. Too many connections and individual parts to be really reliable IMHO.
Lithium batteries are an emerging technology and the consumers are paying for the development and R&D as they go.
Jaahn
Mike Harding said
07:20 AM Oct 24, 2021
Before buying a lithium battery it may be prudent to ask the seller how many cells it contains, perhaps asking them to state that number on the receipt and/or in e-mail?
Personally, if it contains more than four I'd walk away.
