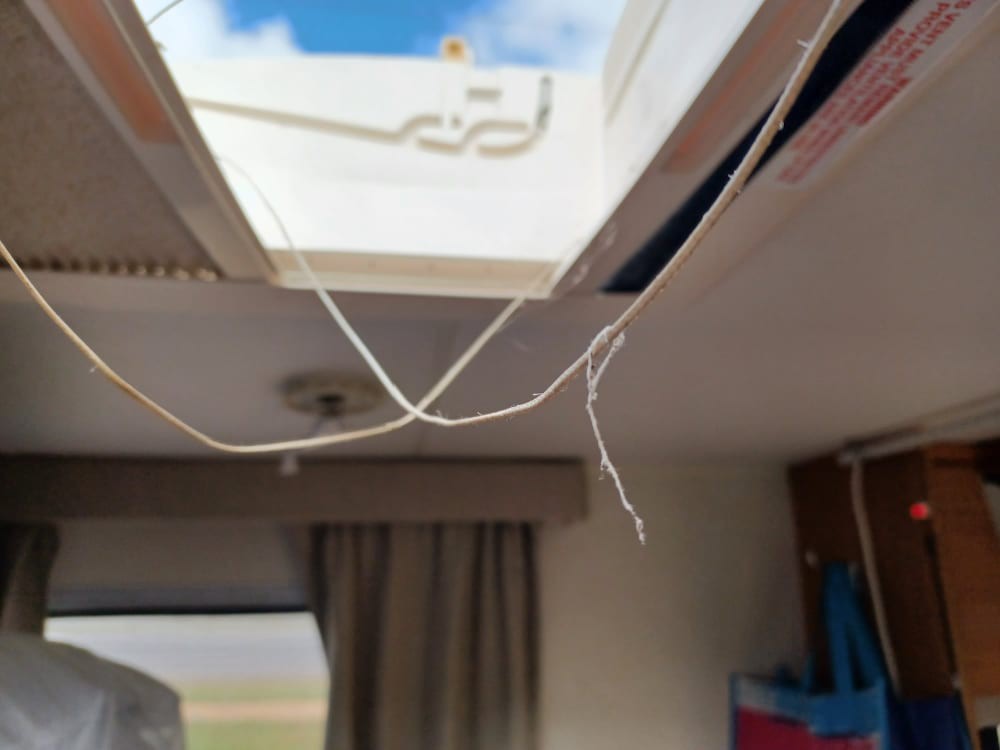

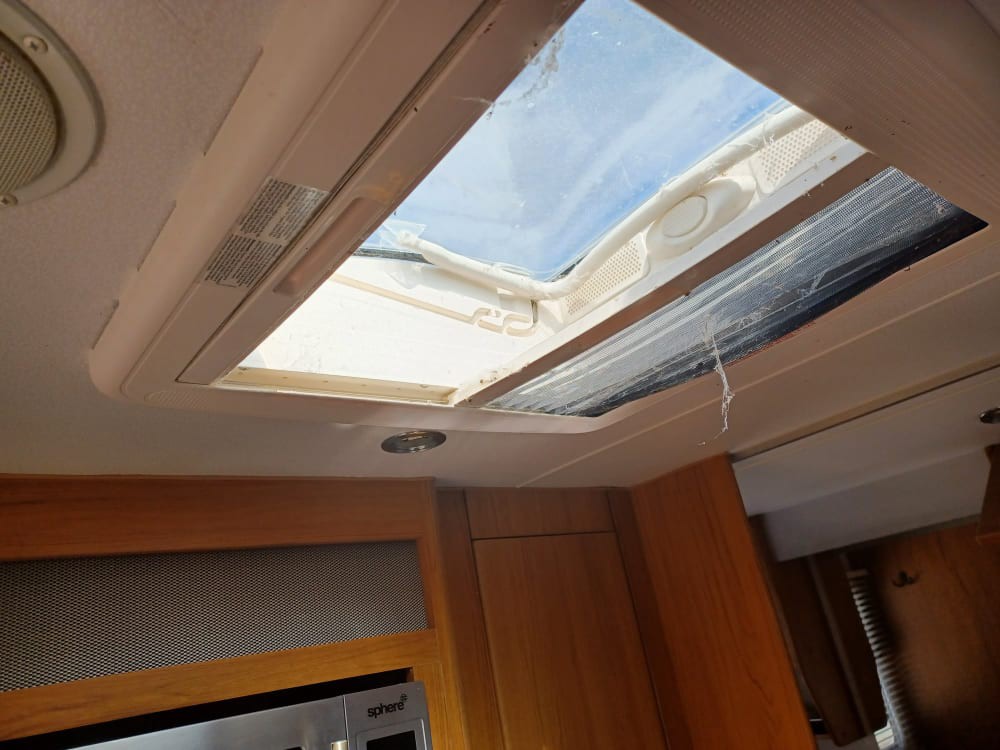

Rugged gusty wind a couple of nights ago decided to take one of the hatches off. I am not sure re model etc so am asking here if someone can identify from these pics.
Looks like an early Dometic Heki. Look up Caravansplus they have full description.
Long Weekend said
08:03 PM Dec 28, 2021

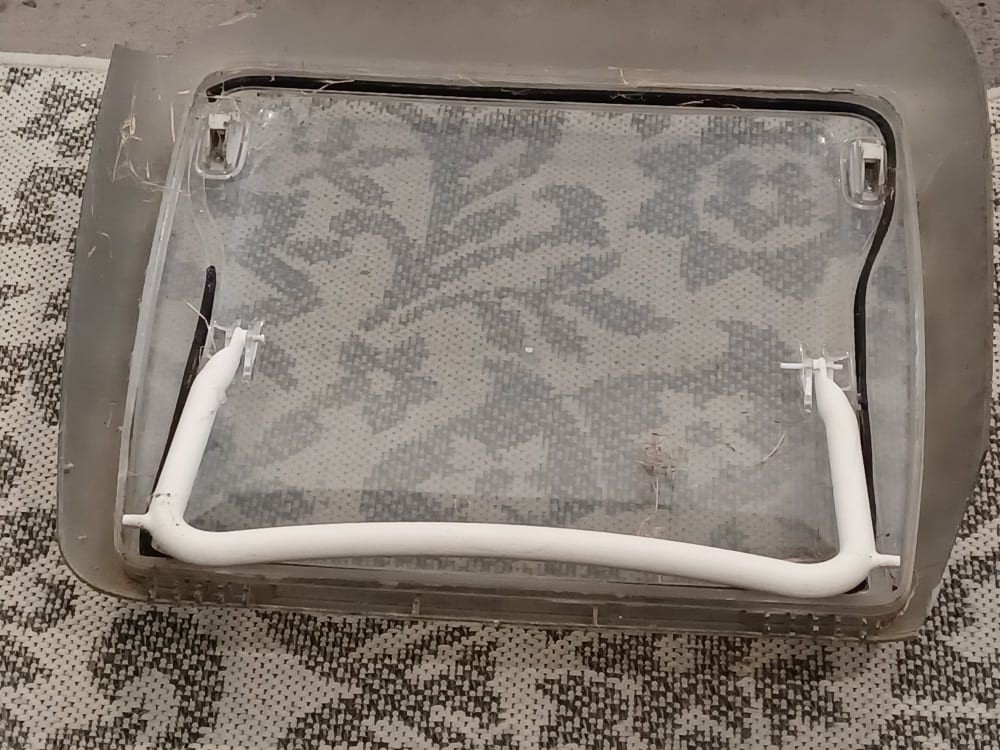

Agree with Bas + Eve. The hatch looks like the Heki that I had to replace on my van. (The 'U' bar in the third photo broke in half allowing it to drop out of the locking notches. The hatch then flew off in a strong wind.)
Note that as well as complete hatches sold by Caravan Plus they have a range of spare parts - you may be able to buy just the part needed to repair your hatch.
Also note that there are two sizes of hatches.
Murray
Cupie said
08:07 PM Dec 28, 2021
As suggested by others, it may be one of these ...
If so could be rather expensive if parts not available ...
aussie_paul said
09:15 PM Dec 28, 2021
Thanks people, I now know what is needed.
Aussie Paul.
iana said
09:55 PM Dec 28, 2021
If you are interested, I have done a simple mod to stop that sort of thing happening (again). I can let you in on the design, but don't tell anyone else!
Long Weekend said
11:52 PM Dec 28, 2021
The link provided by Cupie is for a wind up hatch. The hatch with the lifting/locking bar is slightly cheaper.
Murray
aussie_paul said
07:58 PM Dec 29, 2021
iana wrote:
If you are interested, I have done a simple mod to stop that sort of thing happening (again). I can let you in on the design, but don't tell anyone else!
Would be appreciated iana.
Aussie Paul.
iana said
04:52 PM Dec 31, 2021

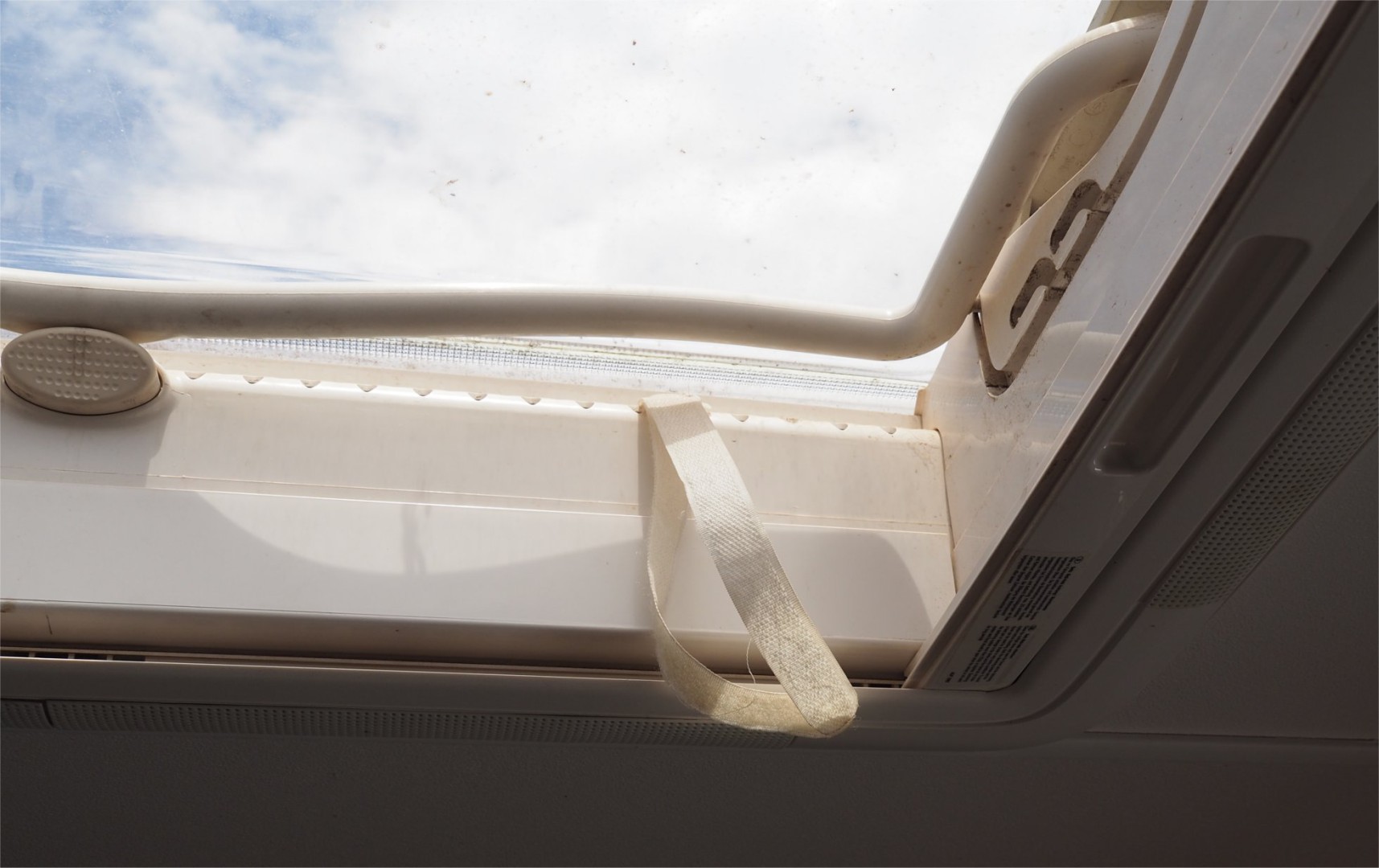

The mod consists of two pairs of velcro straps, each hook and loop about 240mm long, each pair sewn together, a double seam so a plastic tie will pass through. The hatch frame has vent holes, if you pick no's 5 & 6 holes from each end, the plastic tie will pass through it and attach the strap. When the hatch is opened, the velcro will look the lever into the indent, and as long as the lever stays in the indent, the hatch will stay put. We have used this for about 5 years full time on the road, and not had further problems. of course the hatch is locked closed when traveling. PS this is just between you and me!
Rugged gusty wind a couple of nights ago decided to take one of the hatches off. I am not sure re model etc so am asking here if someone can identify from these pics.
Aussie Paul.
Note that as well as complete hatches sold by Caravan Plus they have a range of spare parts - you may be able to buy just the part needed to repair your hatch.
Also note that there are two sizes of hatches.
Murray
As suggested by others, it may be one of these ...
https://www.caravansplus.com.au/dometic-midi-heki-led-skylight-roof-hatch-crank-handle-700x500mm-p-11144.html
If so could be rather expensive if parts not available ...
Thanks people, I now know what is needed.
Aussie Paul.
Murray
Would be appreciated iana.
Aussie Paul.
The mod consists of two pairs of velcro straps, each hook and loop about 240mm long, each pair sewn together, a double seam so a plastic tie will pass through. The hatch frame has vent holes, if you pick no's 5 & 6 holes from each end, the plastic tie will pass through it and attach the strap. When the hatch is opened, the velcro will look the lever into the indent, and as long as the lever stays in the indent, the hatch will stay put. We have used this for about 5 years full time on the road, and not had further problems. of course the hatch is locked closed when traveling. PS this is just between you and me!
Thanks iana.
Aussie Paul.
-- Edited by aussie_paul on Friday 31st of December 2021 11:03:27 PM
