Welcome to GN's Rod, I am not familiar with the "Non-Pressure" on filler cap even though I owned a 2003 Jayco - I would guess that the plumbing system is not suitable for direct connection to mains water (only a filler aperture).
-- Edited by Possum3 on Wednesday 26th of October 2022 10:02:33 AM
Onedodger said
11:18 AM Oct 26, 2022
The cap with non Pressure written on it is for filling the tank by hand IE that means by hose not directly connected or by water can or bucket. The other fitting looks like where you connect directly to a water supply by hose. This would be so if you have a normal tap over the sink. If the van is equipped with its own pressure pump this would then connect into this water system. I suggest that you ask the person you purchased the van from or someone more experienced with vanning to look at your plumbing.
EJP said
11:23 AM Oct 26, 2022
As Possum 3 said, it is for tank filling only, no pressure. I have a 2006 Jacyo Freedom and it has a separate connection point next to the tank filler to attach a mains pressure hose. The van sink has two taps, a hand pump operated tap for the water tank and a separate tap for the mains pressure. They are two separate systems, not connected.
EJP said
11:28 AM Oct 26, 2022
Forgot to add, the other fitting with the black cap is an air vent to vent the tank when filling.
rodsfromday said
12:13 PM Oct 26, 2022
Thank you. I will have a look later today.
Tony Bev said
05:02 PM Oct 26, 2022
EJP wrote:
As Possum 3 said, it is for tank filling only, no pressure. I have a 2006 Jacyo Freedom and it has a separate connection point next to the tank filler to attach a mains pressure hose. The van sink has two taps, a hand pump operated tap for the water tank and a separate tap for the mains pressure. They are two separate systems, not connected.
X2
Welcome to the forum, rodsfromday
Also the the black cap (on my Jayco motorhome) is an American thread On my Jayco Motorhome the black cap cap goes through the water pump This means that you do not need the pump going, when you are connected to the outside garden water tap
Hope that this makes sense
Possum3 said
06:34 PM Oct 26, 2022
Tony Bev wrote:
This means that you do not need the pump going, when you are connected to the outside garden water tap
Hope that this makes sense
An important also; when connected to pump the mains inlet should have a tap/c0ck in closed position so the pump doesn't push the water from tank back through hose attachment nozzle.
rodsfromday said
04:31 PM Nov 1, 2022
Hi
Thanks for all the feedback. I had a look and i have 1 tank which is filled via the "non pressurised" filler and the other inlet runs direct to the 12V pump for kitchen tap.
Hi

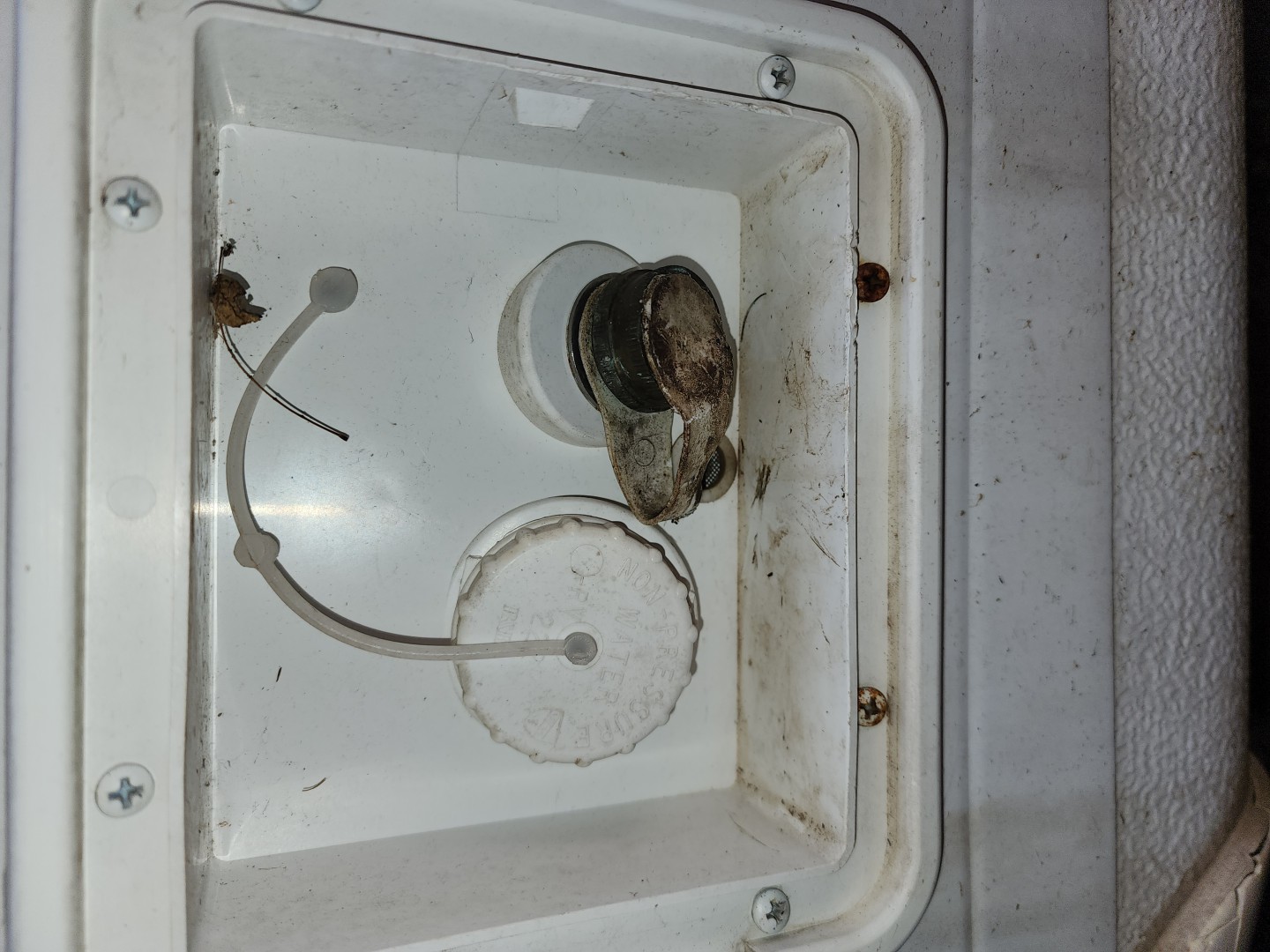

First time poster. I have a 2003 Jayco Freedom that i recently bought. I just wanted to know what the non pressure on th3 cap means please?
Thank you
Welcome to GN's Rod, I am not familiar with the "Non-Pressure" on filler cap even though I owned a 2003 Jayco - I would guess that the plumbing system is not suitable for direct connection to mains water (only a filler aperture).
Perhaps Jayco could advise.
I've checked Jayco filling on line and it isn't mentioned. Guide to your Jayco RV: How to fill your water tanks - Jayco | Jayco Australia
-- Edited by Possum3 on Wednesday 26th of October 2022 10:02:33 AM
The cap with non Pressure written on it is for filling the tank by hand IE that means by hose not directly connected or by water can or bucket. The other fitting looks like where you connect directly to a water supply by hose. This would be so if you have a normal tap over the sink. If the van is equipped with its own pressure pump this would then connect into this water system. I suggest that you ask the person you purchased the van from or someone more experienced with vanning to look at your plumbing.
X2
Welcome to the forum, rodsfromday
Also the the black cap (on my Jayco motorhome) is an American thread
On my Jayco Motorhome the black cap cap goes through the water pump
This means that you do not need the pump going, when you are connected to the outside garden water tap
Hope that this makes sense
An important also; when connected to pump the mains inlet should have a tap/c0ck in closed position so the pump doesn't push the water from tank back through hose attachment nozzle.
Thanks for all the feedback. I had a look and i have 1 tank which is filled via the "non pressurised" filler and the other inlet runs direct to the 12V pump for kitchen tap.
