Text from sticker using google lens text. Not exactly enlightening. Need actual fridge model.
CAUTION MINIMUM INSTALLATION CLEARANCE
0'at sides and top.
In order to assure efficient operation, an adequate airflow over the rear mounted condenser of the refrigerator is required. (See Owner's Manual for details)
ATTENTION DEGAGEMENTS MINIMAUX A L'INSTALLATION
*0 pouces sur les côtés et à la partie supérieure *Afin d'assurer un fonctionnement efficace, il est nécessaire de laisser une circulation d'air adéquate au-dessus du condenseur situé à l'arrière du réfrigérateur (se reporter au manuel du propriétaire pour les détails).
1 RECOMMENDED THERMOSTAT SETTINGS TO PREVENT EXCESSIVE BATTERY DRAIN In order to avoid unnecessary drain of your battery, we recommend to position The thermostat setting at a 2-3(mid) setting at normal ambient conditions of 20°C to 30°C (70°F to 90°F)
Higher ambient conditions may require a greater thermostat setting.
2 IMPORTANCE OF MAINTAINING PROPER CHARGE LEVEL OF BATTERY Maintaining a proper charge level your battery is essential for the proper operation and cosing performance of the Refrigerator. The Refrigerator should never be allowed operate on a DC voltage lower than 10.5VDC at DC12V users and 23VDC at DC24V users. there your battery's charge system or load capacity is adequate for the loads being empinysd. (See Owners Manual for Details)
IMPORTANCE OF NOT EMPLOYING COMMERCIAL TYPE "QUICK CHARGING
SYSTEM TO THE REFRIGERATOR'S DC CIRCUITS age from these types of charge systems can often 32VDC and occur surge voltage este traximum allowed input voltage to the Refrigerator. Never employ the use types of charge system without first isolating (dis-connecting), the er's DC input for branch) circuit from the battery circuit. Failure to isolate rator's DC circuits from these types of charging systems could result in retrigerator's circuits and void it's warranty."
4FOR AC/DC MODEL SERIES
of DC supply voltage are present to refrigerator and the thermostat control knob The son control assembly is in the 1-5 position, an indicator lamp in the control beluminated the refrigerator tails to operate and the indicator lamp ninate check AC shoreline power or a reverse polarity condition of the Wigerbe & DC sput to the battery or the fuse in the power supply.
OR FAN MOTOR ASSEMBLED MODELS ngs, please put power off when you remove this refrigerator.
6460 442 3000
maids said
06:05 PM Dec 4, 2022
AS I said do not know the model we did not buy the thing
tried looking for a sticker.
No manual either
Bobdown said
06:11 PM Dec 4, 2022
A general Fridge mechanic can look at a compressor fridge or aircon service man.
Radar said
08:33 PM Dec 4, 2022
Look at that, no noise with a 3 way refrigerator.
Just saying.
Whenarewethere said
09:26 PM Dec 4, 2022
Except for the coin falling through the bottom of one's pocket!
Whenarewethere said
09:36 PM Dec 4, 2022
The other day I was parked in a quiet street in my acoustically sealed car, fridge running. I could barely hear the compressor & I have very good hearing. My watch was making more noise.
If you mount the fridge properly, compressor itself is mounted properly & appropriate acoustic insulation, no reason why the fridge can't be quiet.
Jaahn said
09:36 AM Dec 5, 2022
Hi Maids Here is a helpful suggestion from my experience. Most fridges have the compressor mounted on flexible mounts so it can move a bit and be quiet, and the pipes have some coils to allow this also. If the flexible mounts are shaken up and settle so the compressor is sitting against the metal frame or base it can transmit a lot of noise when it runs. The solution is often to shake it around a bit so the compressor sits back properly in its mounts evenly and not against any of the metal frame. You could look in there and see if a rubber mount has fallen apart or similar but often it is just sitting badly positioned. You could gently move it a bit with your hands. A fridge technician might look at it for you and help possibly. good luck Jaahn
-- Edited by Jaahn on Monday 5th of December 2022 09:38:36 AM
Whenarewethere said
12:29 PM Dec 5, 2022
Any respectable fridge manufacture will provide the technical data on their fridges.
You could make up a rubber mount with some furniture rubber feet & modify with a scalpel blade, probably a bit too ridged, but all these tasks are trial & "lots" or error, the only way to learn.
Danfoss drawing (personally I would use a Nyloc nut & 2 stages of rubber, ie different rigidness).
-- Edited by Whenarewethere on Monday 5th of December 2022 12:43:25 PM
Mike Harding said
02:01 PM Dec 5, 2022
You can mess around for as long as you like but I have little doubt the solution is a new fridge.
Whenarewethere said
02:14 PM Dec 5, 2022
When I bought a new fridge I modified it to see how much I could improve the off the shelf product. Increased thermal performance external & internal, made it quieter, increased condenser cooling, lowered energy consumption, reduced AM radio interference. Most of this was the "2 cents" here & there in manufacturing costs. Simply rewiring for 16awg to 12awg, not difficult stuff or install a baffle to stop air recirculating around the side of the condenser fan. How much more basic can it be to improve a product.
maids said
06:34 PM Dec 5, 2022
well I found out after much googling it is a Engel ST90F-G4 Upright Fridge Freezer 80L
TheHeaths said
08:50 PM Dec 5, 2022
It would probably be best to find an Engel distributor and give them a call.
That way you will find out quickly if it is worth investing much money, time and effort into.
I did find a manual by googling it, so you could do that and see if it gives you an idea on how to quieter it down.
-- Edited by TheHeaths on Monday 5th of December 2022 08:53:59 PM
Whenarewethere said
11:55 AM Dec 6, 2022
What you will need to do is pull out the fridge, look for the things that you can fix for in effect no cost, unless you have to factor in your labour!
Run the fridge, listen & look carefully for the source of noise. Can easily be 2 or 3 issues.
Compressor mounts are the first.
The compressor itself.
If the compressor has less than optimal mounting, either the compressor or some of the plumbing is touching up against something. Copper plumbing can be massages a bit here & there away from the case, but compressor mounts are first to tick off the list.
Have the bearings of the fan failed, then replace the fan with a Noctua high efficiency fan.
If you feel the overall sound levels are within reason, then look at some foam acoustic insulation for the fridge as a whole, which will isolate the fridge from the vehicle.
This is not difficult stuff, just takes time to narrow down the issues.
I have a Waeco fridge simply bought because it had to fit a space in our car, but I will be one of the first to say that Engel fridges are very good, if its cooling efficiently, fix the acoustic problems.
Some foam , Sikoflex , rubber mounts .sound insulation . Often its two metal objects rattling against each other ? Try and see if you can see pipes remotely close ? Attention to the compressor mounts especially !! Its about the only part that moves or vibrates . Check that condenser or back of fridge is clean and vented ?? They still work better, more efficient .
TheHeaths said
12:32 PM Dec 17, 2022
Maids, have you been able to work anything out re the fridge and its operation?
DeBe said
08:07 PM Dec 17, 2022

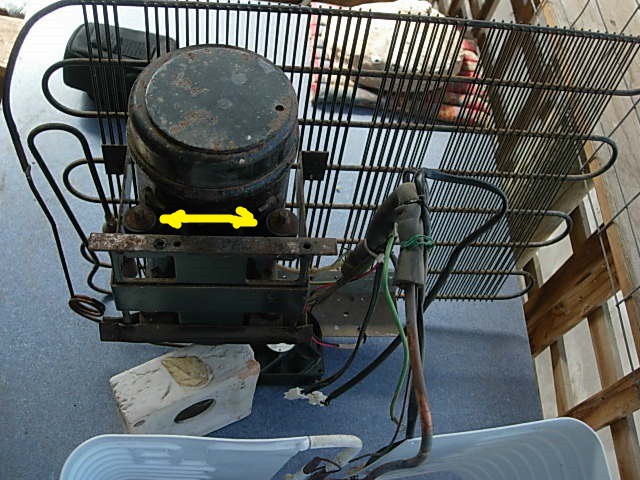

Picture of an Engel compressor. Theres 4 pins that the compressor sits on with rubber grommets. Check the rubber grommets arent perished or gone hard. The Engel compressor is naturaly noisy due to it being a solenoid type compressor running at 50Hz.
Maids, have you been able to work anything out re the fridge and its operation?
Not yet been putting up with it as have no idea how to remove it as it is all fitted.
may have to replace it we have it set on 1.5 it does come on every 5 mins and is noisy
Dont know where to start to look for a replacement and get it fitted in Rockingham WA
-- Edited by maids on Sunday 12th of February 2023 05:30:55 PM
Whenarewethere said
05:57 PM Feb 12, 2023
It you have enough thermal mass in the fridge, lots of liquids, turn the fridge off at night & on in the morning.
We did that, basically no choice, before we had auxiliary batteries.
The fridge will stay cold enough overnight.
maids said
06:11 PM Feb 12, 2023
Whenarewethere wrote:
It you have enough thermal mass in the fridge, lots of liquids, turn the fridge off at night & on in the morning.
We did that, basically no choice, before we had auxiliary batteries.
The fridge will stay cold enough overnight.
problem is that holds our ice
maids said
07:10 PM Feb 13, 2023
will the ice melt
Whenarewethere said
07:29 PM Feb 13, 2023
Depends how cold you run it during the day & how much thermal mass.
We put thin ice bricks around the sides of the evaporator to freeze & held firmly in place & that gave enough ice for the night, actually 2 nights & our fridge is only 28L. At 28L a very poor volume to external surface area ratio.
It's easy to test over a few nights. There are bigger things to worry about than potentially no ice for a couple of days, unless, you shake & not stir your martini every night. Then you need a new fridge.
fridge compressor is noisy and comes on a lot.
image to show model number etc
Usually, noisy compressor is symptom of old fridge with sound amplified by metal floor/wall insulate with stick-on vinyl tiles.
we do not know the model
we only just took possession
The photo doesn't help much.
Text from sticker using google lens text. Not exactly enlightening. Need actual fridge model.
CAUTION MINIMUM INSTALLATION CLEARANCE
0'at sides and top.
In order to assure efficient operation, an adequate airflow over the rear mounted condenser of the refrigerator is required. (See Owner's Manual for details)
ATTENTION DEGAGEMENTS MINIMAUX A L'INSTALLATION
*0 pouces sur les côtés et à la partie supérieure *Afin d'assurer un fonctionnement efficace, il est nécessaire de laisser une circulation d'air adéquate au-dessus du condenseur situé à l'arrière du réfrigérateur (se reporter au manuel du propriétaire pour les détails).
1 RECOMMENDED THERMOSTAT SETTINGS TO PREVENT EXCESSIVE BATTERY DRAIN In order to avoid unnecessary drain of your battery, we recommend to position The thermostat setting at a 2-3(mid) setting at normal ambient conditions of 20°C to 30°C (70°F to 90°F)
Higher ambient conditions may require a greater thermostat setting.
2 IMPORTANCE OF MAINTAINING PROPER CHARGE LEVEL OF BATTERY Maintaining a proper charge level your battery is essential for the proper operation and cosing performance of the Refrigerator. The Refrigerator should never be allowed operate on a DC voltage lower than 10.5VDC at DC12V users and 23VDC at DC24V users. there your battery's charge system or load capacity is adequate for the loads being empinysd. (See Owners Manual for Details)
IMPORTANCE OF NOT EMPLOYING COMMERCIAL TYPE "QUICK CHARGING
SYSTEM TO THE REFRIGERATOR'S DC CIRCUITS age from these types of charge systems can often 32VDC and occur surge voltage este traximum allowed input voltage to the Refrigerator. Never employ the use types of charge system without first isolating (dis-connecting), the er's DC input for branch) circuit from the battery circuit. Failure to isolate rator's DC circuits from these types of charging systems could result in retrigerator's circuits and void it's warranty."
4FOR AC/DC MODEL SERIES
of DC supply voltage are present to refrigerator and the thermostat control knob The son control assembly is in the 1-5 position, an indicator lamp in the control beluminated the refrigerator tails to operate and the indicator lamp ninate check AC shoreline power or a reverse polarity condition of the Wigerbe & DC sput to the battery or the fuse in the power supply.
OR FAN MOTOR ASSEMBLED MODELS ngs, please put power off when you remove this refrigerator.
6460 442 3000
AS I said do not know the model we did not buy the thing
tried looking for a sticker.
No manual either
A general Fridge mechanic can look at a compressor fridge or aircon service man.
Look at that, no noise with a 3 way refrigerator.
Just saying.
Except for the coin falling through the bottom of one's pocket!
The other day I was parked in a quiet street in my acoustically sealed car, fridge running. I could barely hear the compressor & I have very good hearing. My watch was making more noise.
If you mount the fridge properly, compressor itself is mounted properly & appropriate acoustic insulation, no reason why the fridge can't be quiet.
Hi Maids
Here is a helpful suggestion from my experience. Most fridges have the compressor mounted on flexible mounts so it can move a bit and be quiet, and the pipes have some coils to allow this also. If the flexible mounts are shaken up and settle so the compressor is sitting against the metal frame or base it can transmit a lot of noise when it runs.
The solution is often to shake it around a bit so the compressor sits back properly in its mounts evenly and not against any of the metal frame. You could look in there and see if a rubber mount has fallen apart or similar but often it is just sitting badly positioned. You could gently move it a bit with your hands. A fridge technician might look at it for you and help possibly.
good luck Jaahn
-- Edited by Jaahn on Monday 5th of December 2022 09:38:36 AM
Any respectable fridge manufacture will provide the technical data on their fridges.
You could make up a rubber mount with some furniture rubber feet & modify with a scalpel blade, probably a bit too ridged, but all these tasks are trial & "lots" or error, the only way to learn.
Danfoss drawing (personally I would use a Nyloc nut & 2 stages of rubber, ie different rigidness).
-- Edited by Whenarewethere on Monday 5th of December 2022 12:43:25 PM
You can mess around for as long as you like but I have little doubt the solution is a new fridge.
When I bought a new fridge I modified it to see how much I could improve the off the shelf product. Increased thermal performance external & internal, made it quieter, increased condenser cooling, lowered energy consumption, reduced AM radio interference. Most of this was the "2 cents" here & there in manufacturing costs. Simply rewiring for 16awg to 12awg, not difficult stuff or install a baffle to stop air recirculating around the side of the condenser fan. How much more basic can it be to improve a product.
It would probably be best to find an Engel distributor and give them a call.
That way you will find out quickly if it is worth investing much money, time and effort into.
I did find a manual by googling it, so you could do that and see if it gives you an idea on how to quieter it down.
-- Edited by TheHeaths on Monday 5th of December 2022 08:53:59 PM
What you will need to do is pull out the fridge, look for the things that you can fix for in effect no cost, unless you have to factor in your labour!
Run the fridge, listen & look carefully for the source of noise. Can easily be 2 or 3 issues.
Compressor mounts are the first.
The compressor itself.
If the compressor has less than optimal mounting, either the compressor or some of the plumbing is touching up against something. Copper plumbing can be massages a bit here & there away from the case, but compressor mounts are first to tick off the list.
Have the bearings of the fan failed, then replace the fan with a Noctua high efficiency fan.
If you feel the overall sound levels are within reason, then look at some foam acoustic insulation for the fridge as a whole, which will isolate the fridge from the vehicle.
This is not difficult stuff, just takes time to narrow down the issues.
I have a Waeco fridge simply bought because it had to fit a space in our car, but I will be one of the first to say that Engel fridges are very good, if its cooling efficiently, fix the acoustic problems.
Some modifications on my fridge:
https://thegreynomads.activeboard.com/t65059593/extra-fridge-insulation-wattage-test/
Two of four reviewers say that it's a noisy fridge with one reviewer saying, " ....runs on and off about every 3-5 minutes ....".
https://www.productreview.com.au/listings/engel-st90e
Not yet been putting up with it as have no idea how to remove it as it is all fitted.
may have to replace it we have it set on 1.5 it does come on every 5 mins and is noisy
Dont know where to start to look for a replacement and get it fitted in Rockingham WA
-- Edited by maids on Sunday 12th of February 2023 05:30:55 PM
It you have enough thermal mass in the fridge, lots of liquids, turn the fridge off at night & on in the morning.
We did that, basically no choice, before we had auxiliary batteries.
The fridge will stay cold enough overnight.
problem is that holds our ice
Depends how cold you run it during the day & how much thermal mass.
We put thin ice bricks around the sides of the evaporator to freeze & held firmly in place & that gave enough ice for the night, actually 2 nights & our fridge is only 28L. At 28L a very poor volume to external surface area ratio.
It's easy to test over a few nights. There are bigger things to worry about than potentially no ice for a couple of days, unless, you shake & not stir your martini every night. Then you need a new fridge.
