Hose Connected - water comes out of nozzles on tanks 1 & 2
ALANG1 said
09:03 AM Feb 16, 2023
Hi, AG here, we are new to caravaning, we have a small issue when connected to mains water with water steadily dripping back out of the nozzles of tanks 1&2. See attached photo. I thought the tanks 1&2 were totally independent of the mains water supply. I was wondering whether or not the breathers could be blocked? I removed the rubber caps on the tank nozzles but water still drips.
Gday AG, need more information. Caravan, more photos of the other side etc.
Whenarewethere said
11:19 AM Feb 16, 2023
Agree.
A "bit" thin on technical information to add worthwhile suggestions.
gerlin said
11:22 AM Feb 16, 2023
Common problem
Non return is passing water
Maybe an in-line non return or might be just the pump non return
Can buy cheap inline valves from dealers
Plenty of comments on old threads
Gerry
ALANG1 said
12:54 PM Feb 16, 2023
Thanks all, the van is a 2017 Silverline Outback. The external fittings look common to most Jayco vans. Will check Non return . AG
Farmhouse said
04:19 PM Feb 16, 2023
How about a quick call to Jayco service centre, it may be a common problem with a easy fix.
Onedodger said
11:31 AM Feb 18, 2023
Easy fix is to put an inline non return valve between tanks and pump.
Jaybird said
03:38 PM Feb 18, 2023
My discovery did that. The non return valve is on the back side of the filler and in my case accessible from under the seat inside. The cause of mine was a grain of sand holding the valve open. Cleaned and fixed. I probably picked it up in bore water that I filled up with in my travels.
gerlin said
03:58 PM Feb 18, 2023
Jay bird
The non return valve behind the filler is there to stop water coming out of mains connector when running the pump
The OPs is coming out of tank fillers when on mains
Regards Gerry
Steel Dog said
01:56 PM Mar 2, 2023
Hi AG,
Have you resolved the issue?
I have a similar problem, can you advise which, if any, valves you have changed.
Cheers
Steel Dog said
05:33 PM Mar 3, 2023

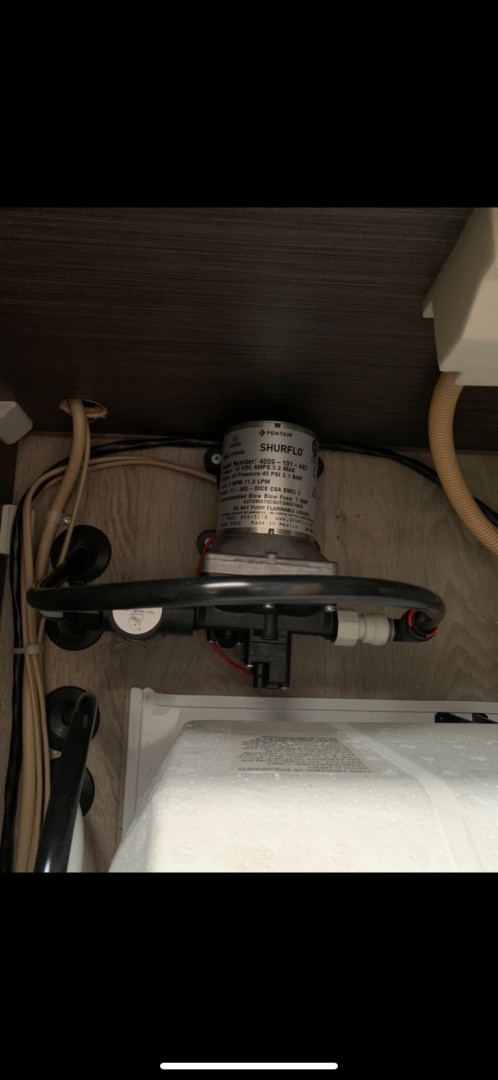

Further research on YouTube, it seems that the 'check valve' in the water pump is allowing the water to bypass and send the 'mains' water to the fresh water tanks.
I turned off the 'mains' water and used the water pump for a few minutes, then I checked the water tank filler nozzles and they had gotten worse, there was quite a lot of water coming out, similar to AG's photos, so I have 2 tanks full of water and will use the pump for the the next week to see if the check valve reseats itself and closes properly, if it doesn't I'll pull the pump apart and see if there is any dirt or sand stopping it from closing properly.
I'm in a caravan park so I'll post an update in a couple weeks.
Steel Dog said
12:19 PM Mar 5, 2023

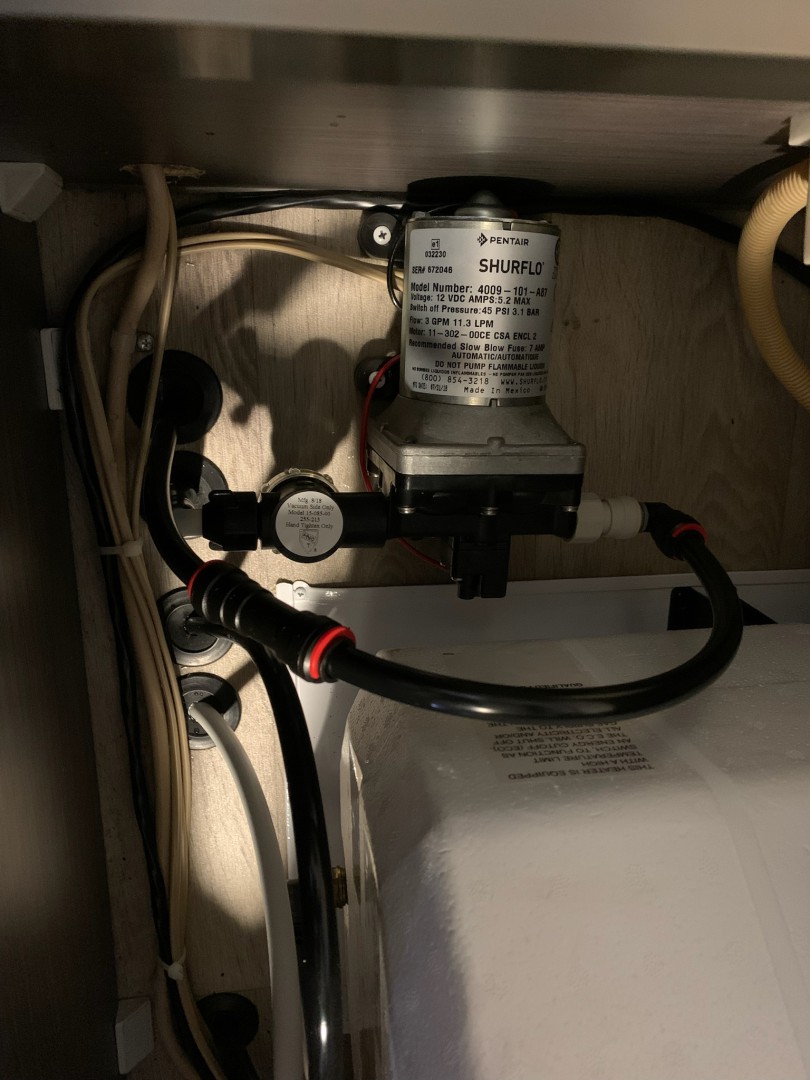

Well, I got sick of the pump noise after one night so I went to Jayco Spare parts and bought an in line 'Non Return Valve' cost $35.00, plus 2 plastic tube end fittings and 2 circlips, all up under $40.00.
Easy fit, took all of 10 minutes, turn pump off, turn mains water off, remove 240v extension lead from caravan, release pressure in HWS, leave a tap on to confirm no water pressure, cut the 'hard plastic' outlet pipe (a small amount comes out), I cut it with scissors, insert the plastic tube ends, check Arrow on non return valve is pointing away from the pump (water flow direction) push the pipe ends into the non return valve (all the way past the o-rings), push them forward and backwards a bit then pull them back slightly an insert the circlips, problem solved, easy peasy.
Similar to Steel Dog, I had to fit a Non Return Valve adjacent to the water pump in my Jayco van. The mechanism of the pump is not up to stopping back flow, as the pump wears and ages. From Steel Dog's photos, it looks like SD had a bit more space and a slightly different pipe layout. I used a couple of 90deg elbows as well.
Hi, AG here, we are new to caravaning, we have a small issue when connected to mains water with water steadily dripping back out of the nozzles of tanks 1&2. See attached photo. I thought the tanks 1&2 were totally independent of the mains water supply. I was wondering whether or not the breathers could be blocked? I removed the rubber caps on the tank nozzles but water still drips.
Agree.
A "bit" thin on technical information to add worthwhile suggestions.
Non return is passing water
Maybe an in-line non return or might be just the pump non return
Can buy cheap inline valves from dealers
Plenty of comments on old threads
Gerry
Easy fix is to put an inline non return valve between tanks and pump.
The non return valve behind the filler is there to stop water coming out of mains connector when running the pump
The OPs is coming out of tank fillers when on mains
Regards Gerry
Have you resolved the issue?
I have a similar problem, can you advise which, if any, valves you have changed.
Cheers
I turned off the 'mains' water and used the water pump for a few minutes, then I checked the water tank filler nozzles and they had gotten worse, there was quite a lot of water coming out, similar to AG's photos, so I have 2 tanks full of water and will use the pump for the the next week to see if the check valve reseats itself and closes properly, if it doesn't I'll pull the pump apart and see if there is any dirt or sand stopping it from closing properly.
I'm in a caravan park so I'll post an update in a couple weeks.
Well, I got sick of the pump noise after one night so I went to Jayco Spare parts and bought an in line 'Non Return Valve' cost $35.00, plus 2 plastic tube end fittings and 2 circlips, all up under $40.00.
Easy fit, took all of 10 minutes, turn pump off, turn mains water off, remove 240v extension lead from caravan, release pressure in HWS, leave a tap on to confirm no water pressure, cut the 'hard plastic' outlet pipe (a small amount comes out), I cut it with scissors, insert the plastic tube ends, check Arrow on non return valve is pointing away from the pump (water flow direction) push the pipe ends into the non return valve (all the way past the o-rings), push them forward and backwards a bit then pull them back slightly an insert the circlips, problem solved, easy peasy.
Cheers
