I purchased a retractable hose unit (similar to a garden type) for a few reasons. I didnt want water dripping inside a compartment, I wanted to use it also to fill a bladder in the rear of my tow vehicle and time saving as other people could be waiting.

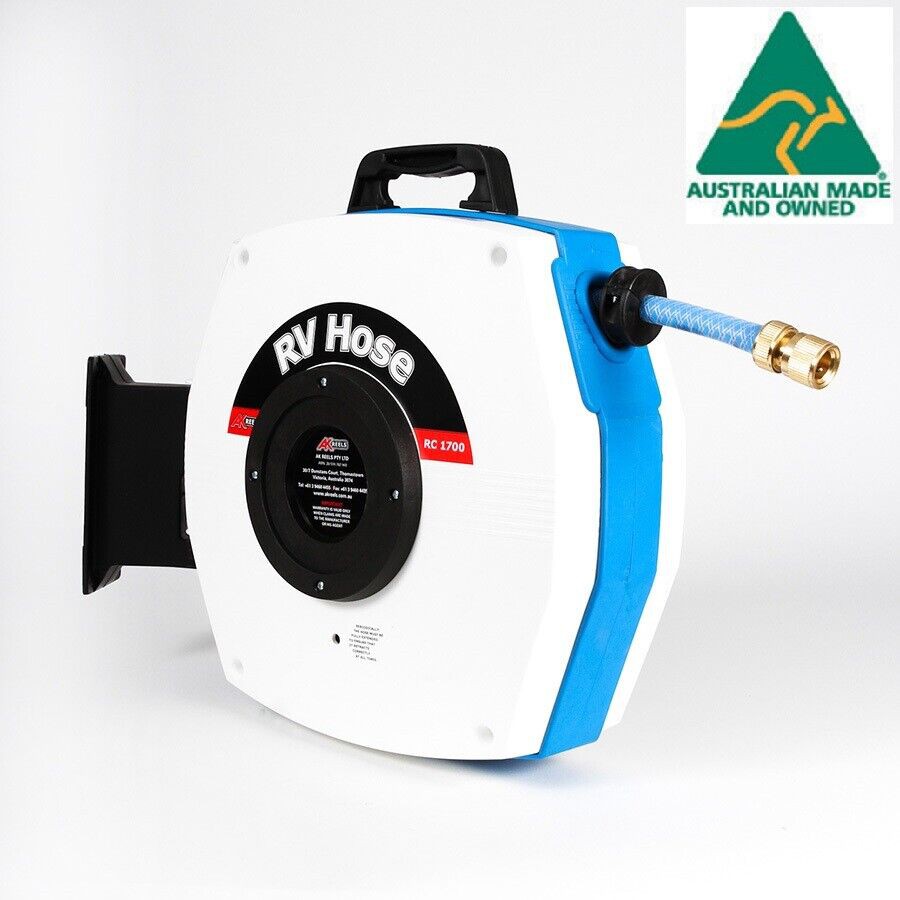

Anyway purchased the unit pictured that is made to lie flat or vertical. Mounted under the rear of the van it is extracted when needed. The other end of it (the end you would link to your garden tap) runs along the C chassis to a "Y" connector at the front toolbox. Two incorporated taps one goes to the 95L bladder in the rear of the SUV and the other to the water tank. So its just a case of turning off/on the taps to the "Y" unit to achieve your filling. Then retract. So this means only one hose needed and thats this retractable one.
Another thought. 2 snap on fittings mounted on an upper panel & hose clipped on will stop dripping.
I blow out my plumbing with air compressor.
Possum3 said
12:50 PM Aug 16, 2023
A note of caution to anyone blowing out plumbing with compressed air. Most plumbing internal and external utilises connectors similar to John Guest Push on fittings; these will be blown off with only a modicum of pressure applied internally.
If plumbing is inside walls - don't pressurise with air.
Whenarewethere said
02:33 PM Aug 17, 2023
There is a difference to blowing out a system compared to pressurising it.
Having said that I have added a few lengths of garden hose to get air to a remote area, about 100 metres with an additional air tank at the end.
I set the regulator in my car (4.5 CFM at 90psi) to 60psi which is within a garden hose SWL.
Possum3 said
08:19 AM Aug 22, 2023
I offered advice on the experience of having John Guest fittings blow off inside walls, and having to repair several vans from the resultant. - your choice as always. Note the capability of garden hose has naught to do with the fitting of caravan internal fitments by Labourers at a caravan manufacturer.
Eaglemax said
05:18 PM Aug 26, 2023
Possum3 wrote:
I offered advice on the experience of having John Guest fittings blow off inside walls, and having to repair several vans from the resultant. - your choice as always. Note the capability of garden hose has naught to do with the fitting of caravan internal fitments by Labourers at a caravan manufacturer.
All advice welcomed Possum. Thankyou.

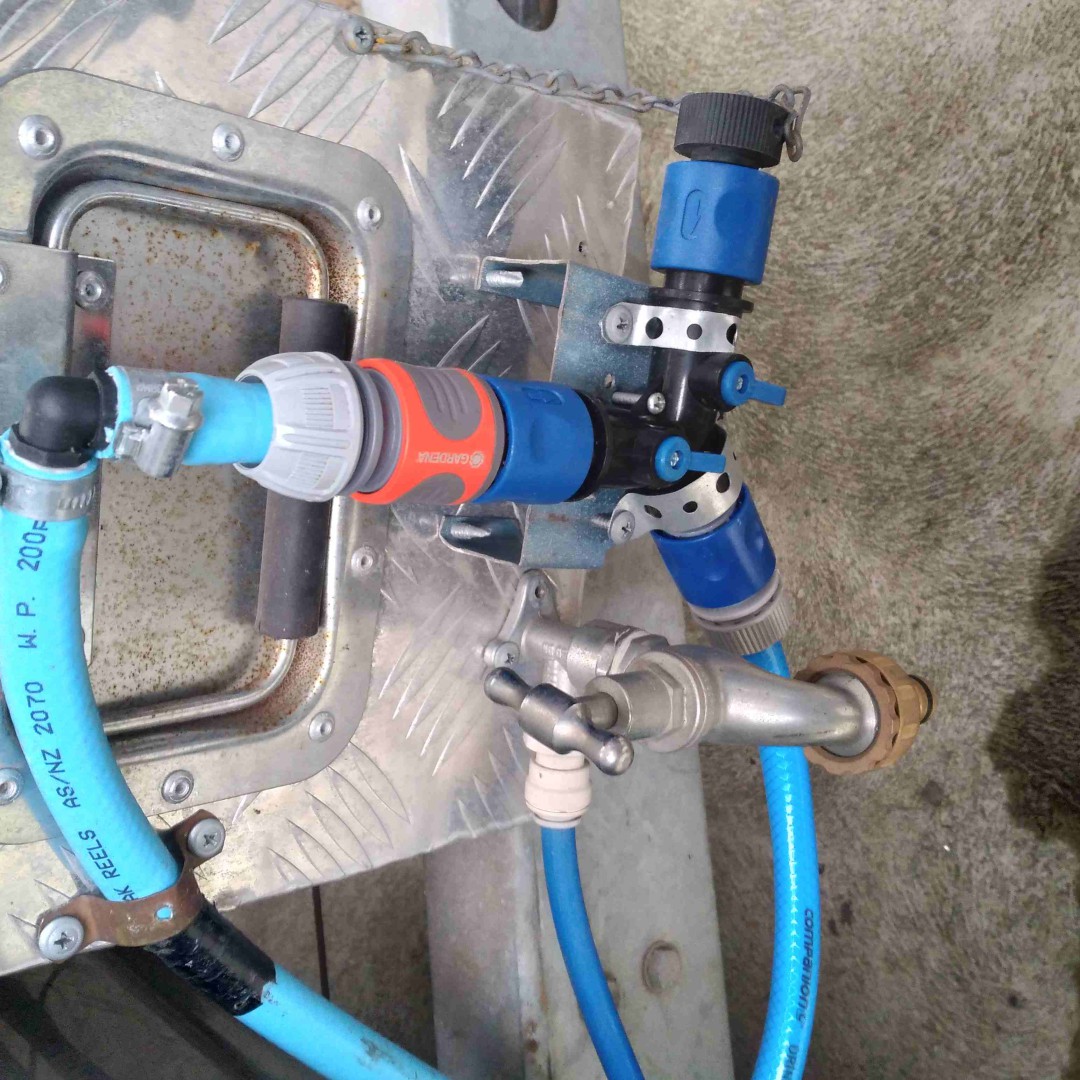

I've modified the plumbing. I use a water bladder in the tug with 12V pump. So, if that and the main van tank is empty rather than hook both up separately to fill, I now have plumbed it all with a "Y" fitting on the drawbar. I pull out the retractable hose to the tap. Then attend the drawbar and turn the small levers on the "Y" fitting to fill the bladder, once full turn them to fill the van tank. Much easier now to fill 205 litres of water that does us about 8 days or more.
I purchased a retractable hose unit (similar to a garden type) for a few reasons. I didnt want water dripping inside a compartment, I wanted to use it also to fill a bladder in the rear of my tow vehicle and time saving as other people could be waiting.
Anyway purchased the unit pictured that is made to lie flat or vertical. Mounted under the rear of the van it is extracted when needed. The other end of it (the end you would link to your garden tap) runs along the C chassis to a "Y" connector at the front toolbox. Two incorporated taps one goes to the 95L bladder in the rear of the SUV and the other to the water tank. So its just a case of turning off/on the taps to the "Y" unit to achieve your filling. Then retract. So this means only one hose needed and thats this retractable one.
Another thought. 2 snap on fittings mounted on an upper panel & hose clipped on will stop dripping.
I blow out my plumbing with air compressor.
If plumbing is inside walls - don't pressurise with air.
There is a difference to blowing out a system compared to pressurising it.
Having said that I have added a few lengths of garden hose to get air to a remote area, about 100 metres with an additional air tank at the end.
I set the regulator in my car (4.5 CFM at 90psi) to 60psi which is within a garden hose SWL.
All advice welcomed Possum. Thankyou.
I've modified the plumbing. I use a water bladder in the tug with 12V pump. So, if that and the main van tank is empty rather than hook both up separately to fill, I now have plumbed it all with a "Y" fitting on the drawbar. I pull out the retractable hose to the tap. Then attend the drawbar and turn the small levers on the "Y" fitting to fill the bladder, once full turn them to fill the van tank. Much easier now to fill 205 litres of water that does us about 8 days or more.
