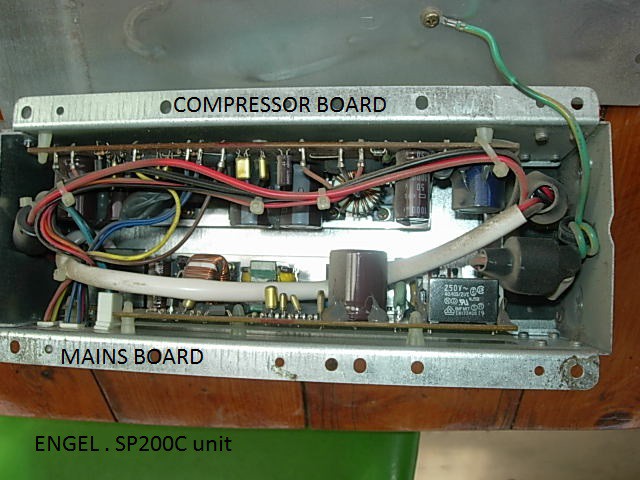

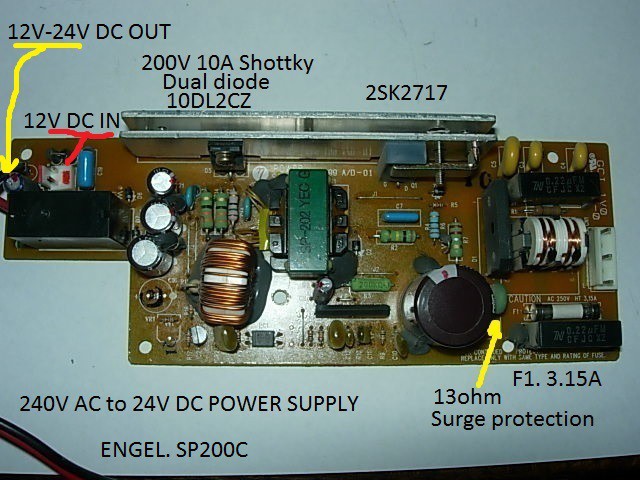

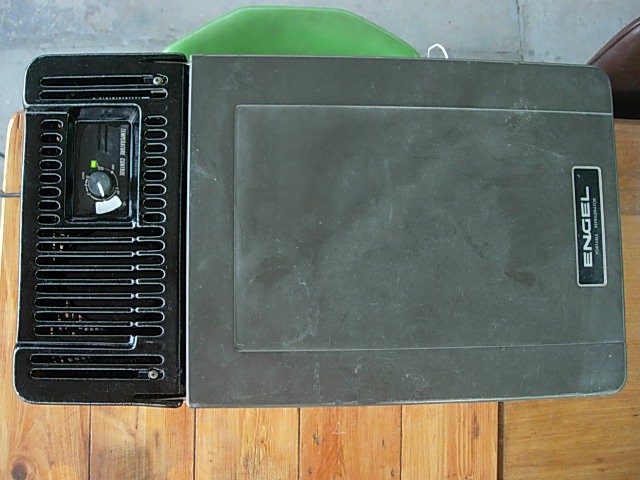

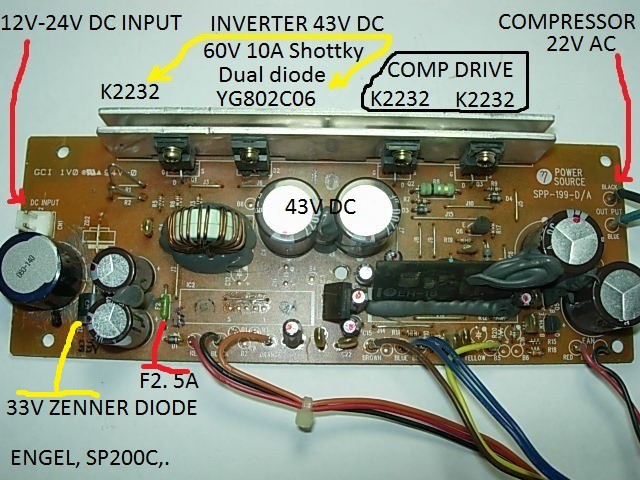

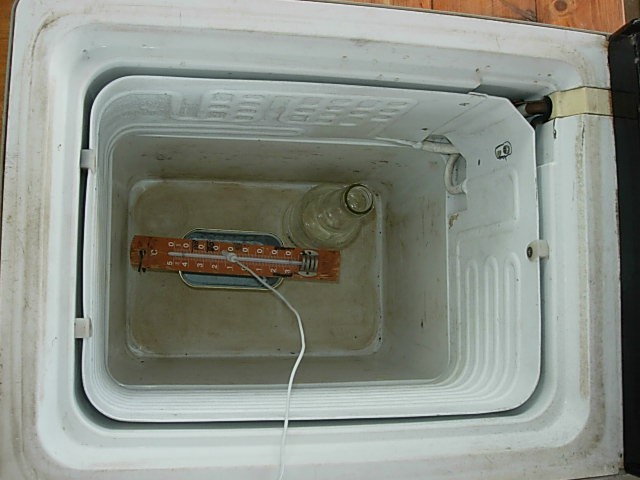

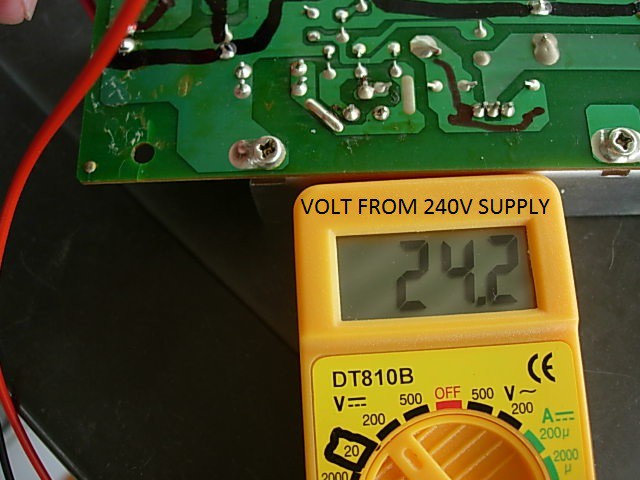

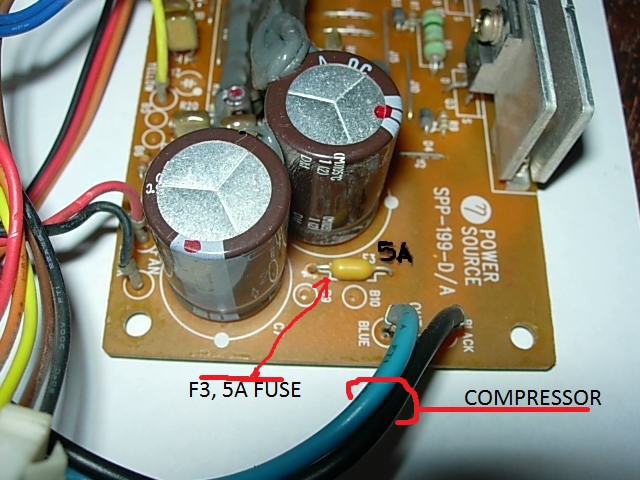

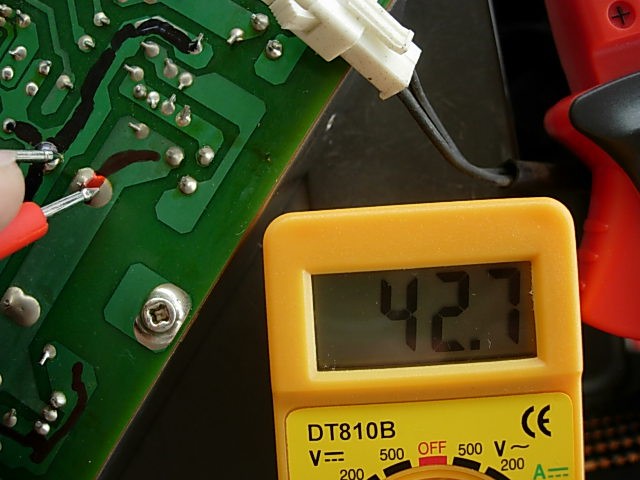

Picked up this little Engel fridge from local scrap yard free. A good clean up & paint job on the metalwork, & it seems to work quite well. It cycles around minus 16 deg C as a freezer, & 1-2 degC as a fridge. A few pictures of the power boards just for any one who may be interested in repairing one. The build date was 2002 & the power unit is SP200C. There is 2 boards, one is a 240V AC to 24V DC. The other board has a DC-DC Inverter that steps 12V or 24V DC up to 42V DC, This is fed to the Inverter that drives the Compressor with 50 Cycles of 22V AC. There are 3 Fuses on the boards.
Picked up this little Engel fridge from local scrap yard free. A good clean up & paint job on the metalwork, & it seems to work quite well. It cycles around minus 16 deg C as a freezer, & 1-2 degC as a fridge. A few pictures of the power boards just for any one who may be interested in repairing one. The build date was 2002 & the power unit is SP200C. There is 2 boards, one is a 240V AC to 24V DC. The other board has a DC-DC Inverter that steps 12V or 24V DC up to 42V DC, This is fed to the Inverter that drives the Compressor with 50 Cycles of 22V AC. There are 3 Fuses on the boards.
A few more pictures.
