I purchased a new deep cycle battery which was fitted a few weeks ago. Whilst camping off the grid I noticed it was discharging but no recharge coming through the solar and regulator.
On another topic I noticed that some people need to reset the regulator.Everything was working ok before the change of battery.
Any clues would be much appreciated.
Possum3 said
01:11 PM Dec 8, 2018
Is it possible that technician that fitted battery accidentally "shorted" solar circuit and blew an inline fuse?
Jaahn said
01:12 PM Dec 8, 2018
Hi DMaxer
Thanks for starting a new thread to discuss this. We would need more details on the type of regulator and possibly some details on the solar size and battery to give good answers.
But here is my suggestion to start. The regulator has a procedure to connect the wires correctly so it works properly and does not damage it. Look in your book !! But usually you must disconnect the loads first, the solar second, and then the battery last. Leave it for some minutes, then reconnect the battery first, leave it a minute to go through its procedures, then the solar, then the load last. This should reset most regulators.
It is possible when the battery was fitted they did not use this procedure. If it does not work then you will need to check it more to find out why. Good quality regulators will be protected against faulty connection but may get confused and not startup charging. Poor quality ones may blow a "transistor".
Good luck Jaahn
PS let us know what happens !
DMaxer said
01:18 PM Dec 8, 2018
Thanks for the reply. When the battery was fitted it was out with the old and in with the new. No disconnection of anything except the leads from the old battery.
It is a Volttech regulator and there is no book.
Thanks for your help.
Dougwe said
01:38 PM Dec 8, 2018
Hi DM, maybe if you follow the disconnection and reconnection of Regulator procedure it might do the trick mate. Worth a go.
Peter_n_Margaret said
02:24 PM Dec 8, 2018
DMaxer wrote:
Thanks for the reply. When the battery was fitted it was out with the old and in with the new. No disconnection of anything except the leads from the old battery.
That is your problem.
As explained previously, you MUST connect the solar and load AFTER connecting the battery. If you did not disconnect the solar and load then it became confused.
Cheers,
Peter
DMaxer said
06:50 PM Dec 8, 2018
Disconnected everything then connected everything, Seems to be working again. Thanks for the help.
Whenarewethere said
06:58 PM Dec 8, 2018

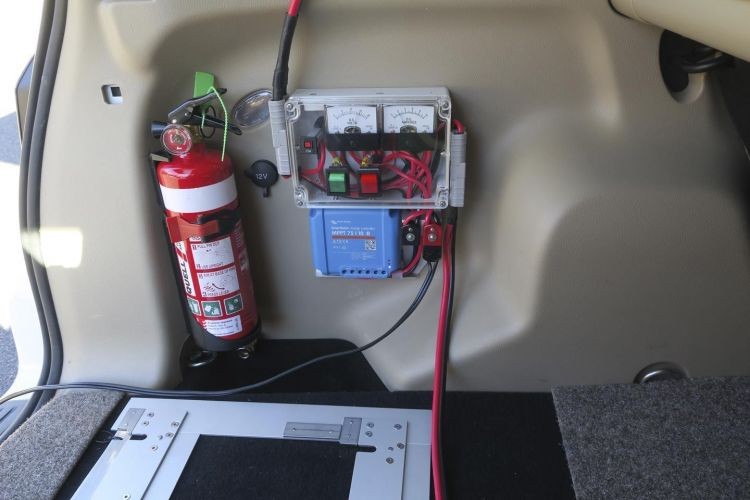

I wired in an amp meter & volt meter into my network so I can see what's going on at any time.
I purchased a new deep cycle battery which was fitted a few weeks ago. Whilst camping off the grid I noticed it was discharging but no recharge coming through the solar and regulator.
On another topic I noticed that some people need to reset the regulator.Everything was working ok before the change of battery.
Any clues would be much appreciated.
Hi DMaxer
Thanks for starting a new thread to discuss this.
We would need more details on the type of regulator and possibly some details on the solar size and battery to give good answers.
But here is my suggestion to start. The regulator has a procedure to connect the wires correctly so it works properly and does not damage it. Look in your book !! But usually you must disconnect the loads first, the solar second, and then the battery last. Leave it for some minutes, then reconnect the battery first, leave it a minute to go through its procedures, then the solar, then the load last. This should reset most regulators.
It is possible when the battery was fitted they did not use this procedure. If it does not work then you will need to check it more to find out why. Good quality regulators will be protected against faulty connection but may get confused and not startup charging. Poor quality ones may blow a "transistor".
Good luck Jaahn
PS let us know what happens !
Thanks for the reply. When the battery was fitted it was out with the old and in with the new. No disconnection of anything except the leads from the old battery.
It is a Volttech regulator and there is no book.
Thanks for your help.
That is your problem.
As explained previously, you MUST connect the solar and load AFTER connecting the battery. If you did not disconnect the solar and load then it became confused.
Cheers,
Peter
Disconnected everything then connected everything, Seems to be working again. Thanks for the help.
I wired in an amp meter & volt meter into my network so I can see what's going on at any time.
Hi DMaxer
Great result.
A learning experience for you to use next time !!
Jaahn
PS I too can recommend a couple of simple meters or indicators for instantly checking on the system. Peace of mind to know it is working properly.
This could be a manual for your reg. Or google for the correct model. https://pacificrv.com.au/wp-content/uploads/2014/12/Solar-charger-isc3032.pdf
-- Edited by Jaahn on Saturday 8th of December 2018 08:28:37 PM
-- Edited by Jaahn on Saturday 8th of December 2018 08:39:09 PM
The old "turn it off, turn it back on trick" I will get an auto electrician to have a look at it when I am back in civilisation.
Thanks for all your help and the download everyone.
