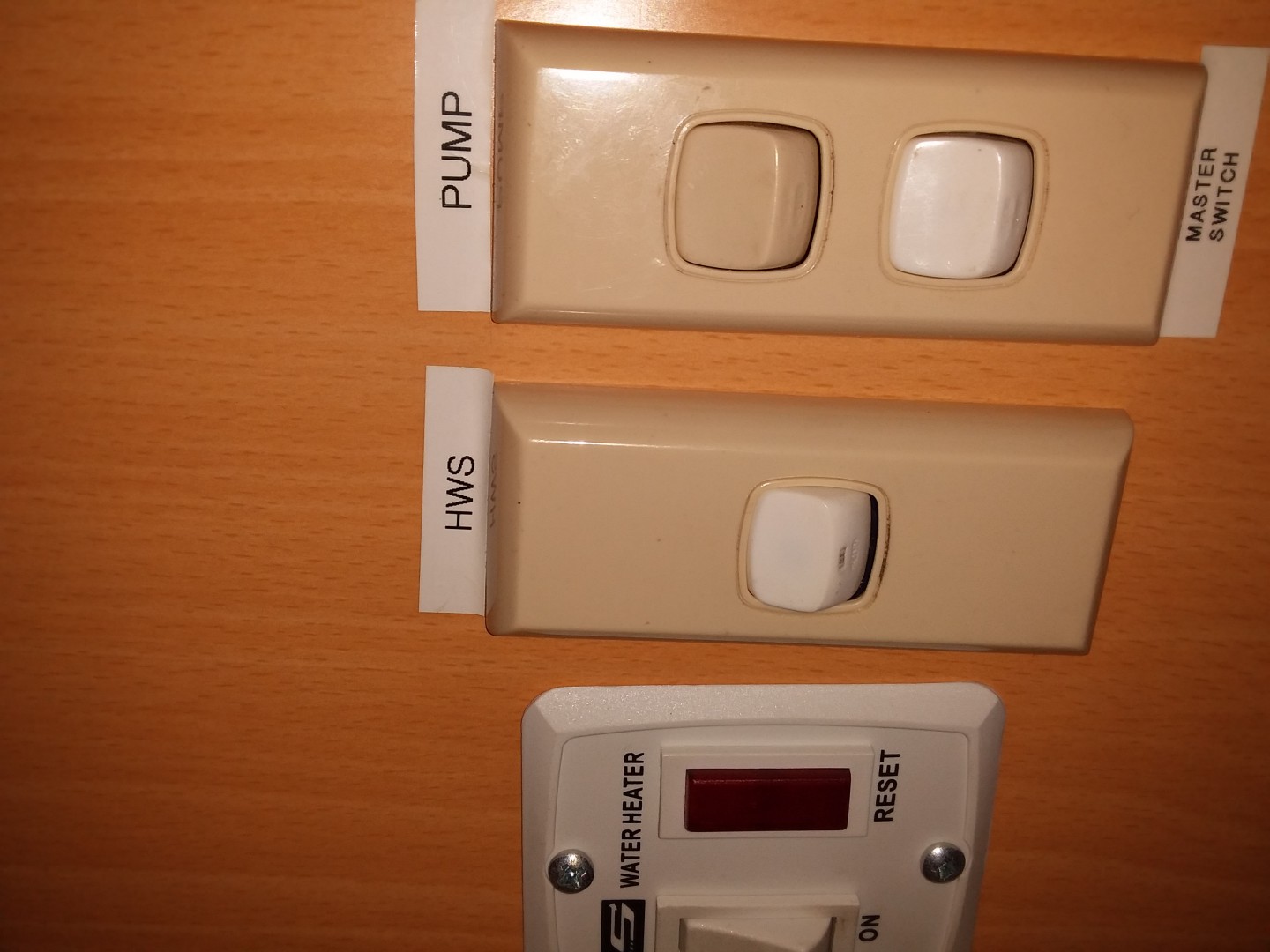

Hi all. We've had our van over a year now, and camped off grid and in parks on 240v without any issues with power. 160W solar and 120ah battery. I can't work out what this switch. "Master Switch", actually does. On or off everything works, or appears to. The 3 way fridge is pretty weak on 12v when towing, but I understand that is normal, but I admit I have never turned this mystery switch on. We use 240v in parks, and gas for the fridge when bush camping. I'm now thinking it may be a switch for 12v to the fridge when traveling. Can anyone help? Thanks in advance.
Hi all. We've had our van over a year now, and camped off grid and in parks on 240v without any issues with power. 160W solar and 120ah battery. I can't work out what this switch. "Master Switch", actually does. On or off everything works, or appears to. The 3 way fridge is pretty weak on 12v when towing, but I understand that is normal, but I admit I have never turned this mystery switch on. We use 240v in parks, and gas for the fridge when bush camping. I'm now thinking it may be a switch for 12v to the fridge when traveling. Can anyone help? Thanks in advance.
At a guess I'd say it's a 240V isolation switch OR 12V isolation switch. Turn power off and take switch out and see if it's:
1 even connected
2 are they 240 wires OR 12V wires
That should be the start,,,,
then see where wires go (if you can obviously)
Radar said
07:20 PM Mar 9, 2019
On our 2012 built caravan that switch cuts out 12 volt to the important bits, frig cotrol, stove and so forth but at the moment I have now placed tape over it so if I bump it again I don't have nightmares trying to find the electrical problem, one day I will get super game and remove the switch and all the other annoying wires in the boot area.
If it was not raining I would go out and take a picture to show and tell.
I believe it disconects the power from your 12 volt system.
landy said
09:48 PM Mar 9, 2019
Dave and Jezza. Just a thought have you made a a call to the manufacturer of the van or are they no longer in business. Landy.
PeterD said
11:52 PM Mar 10, 2019
What is your van? In the Jaycos the switch isolates the battery from the 12 V system. Your van may be the same. Disconnect the mains lead from the van, switch on a light or two and then operate the switch. If the lights go out then it is a battery isolation switch.
Dave Jezza said
06:27 PM Mar 11, 2019
Yeah mate, sent them an email but waiting on an answer. 2010 Roma.
Dave Jezza said
06:30 PM Mar 11, 2019
PeterD, switched it on/off.... no difference. All works. Not sure about the fridge on 12v tho. Waiting for a reply from Roma factory. Thinking it may have been disconnected when I had solar fitted.
Aus-Kiwi said
02:06 PM Mar 14, 2019
If you have an inverter ? It isolates connected AC 240v from inverter AC. Generally . Different AC cannot be mixed unlike DC.
