One of the gas burners in the caravan will light but not stay on. I push the knob in and turn it to the left and it ignites as it is supposed to but it will not stay on. I do leave the knob pushed in for the appropriate amount of time to ensure it stays engaged.
When I release the knob the gas goes off. I have tried leaving the knob pushed in for a longer period but it still turns the gas off when released.
Has anyone any suggestions on how to fix this problem?
Your Gas burner may be fitted with a Flame Failure Device which is faulty, ie if the flame goes out in normal operation this device will switch off the gas, or could be a problem with the switch mechanism. If either I suggest its a Gas fitters job.
Check to see that all the Gas jets around the Gas Burner are actually lit. If the flame/Jet by the Thermocouple (Flame Detector) is not lit or very weak, Or if the thermoouple is bent !. Flame dose not touch, or get detected by the Themocouple and shuts the gas off when the knob is released.
Try using a GAS MATCH LIGHTER when you Switch the burner knob on.
1 Light the Gas Match Lighter and direct the flame on the thermocouple heating it. (the little thing sticking up along side the burner usually at the back)
2 Push the gas burner knob in and the gas ring will light up tun to the top setting. Keep the Gas Match Lighter lit heating the Themocouple.
3 Keeping the Gas lighter on the themocouple release the gas ring knob.
If the gas ring remains lit while you have the lighter on the thermocouple then goes out when you remove the Gas Lighter, there will be something wrong with the flame "from that gas port onto the thermocouple". It may be blocked.
Or the Themocouple may be bent and out of the gas flame.
graeme c said
11:45 AM Mar 11, 2019
I had a similar problem. a wire underneath was off, spade connector, cost me $50 to get a gas fitter to find and reconnect, m cutlery draw is under the stove and knocked the wire off
cjt55 said
02:08 PM Mar 11, 2019
Thanks for the replies so far. Possum3 it is a Regal Van built in 2008. Will look at the suggestions so far.
Bukhouse said
10:27 PM Mar 11, 2019
Hi Colin,
The problem with your cooker not lighting up and staying lit when the gas is on and the ignition is sparking
is the thermocouple is faulty and needs replacing you can buy them off eBay or through Dometic
If you are a handy person it is something you can do yourself as you need to take the cooker out and dis assemble it
to get thermocouple out
they are different lengths and styles
the thermocouple connects to the back of the ignition knob and runs to the side off the gas jet
What type \ make off cook top is it ??
Cheers Ken
-- Edited by Bukhouse on Monday 11th of March 2019 10:32:16 PM
Might be a long shot, but there is a screw behind the knob to adjust the flame. If yours lights as you say, is the flame very low? Pull the knob off and use a small phillips screwdriver in the hole to adjust.
We had a new van and all the burners were set very high, when you want to simmer something on low, it was too fierce, so I lit the flame and removed the knob and adjusted the flame down to the right height.
A trick a Plumber showed me.
Cheers Bob
oldbloke said
09:12 PM Mar 20, 2019
As ken said replace the thermocouple
cjt55 said
09:29 AM Mar 21, 2019
Hi Ken, sorry for the late reply as I have been away. I have a CAMEC SMEV Model 402 Hotplate and grill.
Bukhouse said
11:19 PM Mar 21, 2019
Hi cjt55,
I have attached manual off your cooker
if you are handy and you want to fix your self I can run you through the steps if you like
the thermo couple can be brought from Dometic

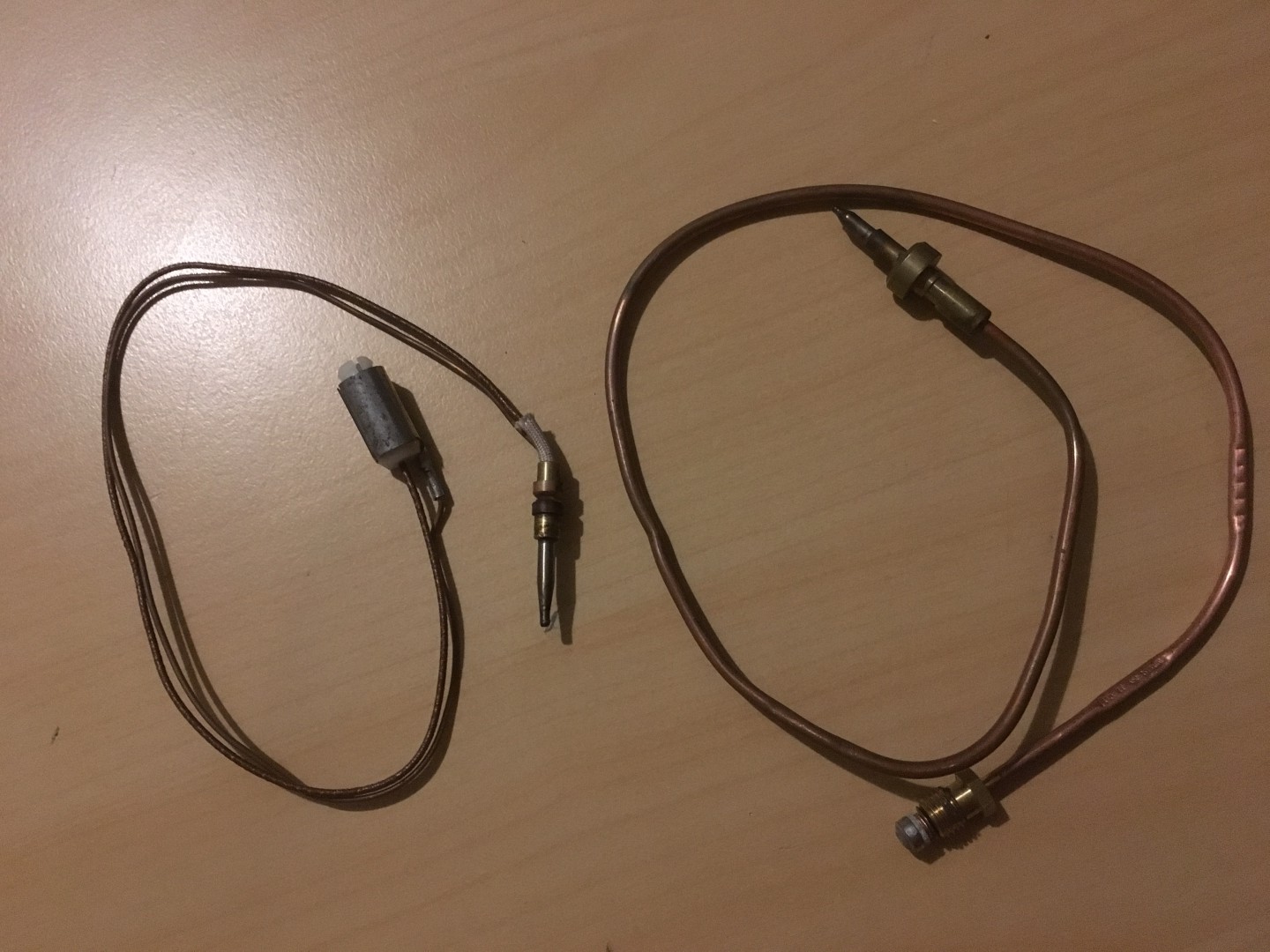

the thermos couple on your cooker is the type on the left
they come in different lengths 220mm 300mm and 500mm and the cost is about $68
-- Edited by Bukhouse on Thursday 21st of March 2019 11:37:41 PM
-- Edited by Bukhouse on Thursday 21st of March 2019 11:45:07 PM
One of the gas burners in the caravan will light but not stay on. I push the knob in and turn it to the left and it ignites as it is supposed to but it will not stay on. I do leave the knob pushed in for the appropriate amount of time to ensure it stays engaged.
When I release the knob the gas goes off. I have tried leaving the knob pushed in for a longer period but it still turns the gas off when released.
Has anyone any suggestions on how to fix this problem?
en.wikipedia.org/wiki/Flame_supervision_device
Check to see that all the Gas jets around the Gas Burner are actually lit. If the flame/Jet by the Thermocouple (Flame Detector) is not lit or very weak, Or if the thermoouple is bent !. Flame dose not touch, or get detected by the Themocouple and shuts the gas off when the knob is released.
Try using a GAS MATCH LIGHTER when you Switch the burner knob on.
1 Light the Gas Match Lighter and direct the flame on the thermocouple heating it. (the little thing sticking up along side the burner usually at the back)
2 Push the gas burner knob in and the gas ring will light up tun to the top setting. Keep the Gas Match Lighter lit heating the Themocouple.
3 Keeping the Gas lighter on the themocouple release the gas ring knob.
If the gas ring remains lit while you have the lighter on the thermocouple then goes out when you remove the Gas Lighter, there will be something wrong with the flame "from that gas port onto the thermocouple". It may be blocked.
Or the Themocouple may be bent and out of the gas flame.
I had a similar problem. a wire underneath was off, spade connector, cost me $50 to get a gas fitter to find and reconnect, m cutlery draw is under the stove and knocked the wire off
Hi Colin,
The problem with your cooker not lighting up and staying lit when the gas is on and the ignition is sparking
is the thermocouple is faulty and needs replacing you can buy them off eBay or through Dometic
If you are a handy person it is something you can do yourself as you need to take the cooker out and dis assemble it
to get thermocouple out
they are different lengths and styles
the thermocouple connects to the back of the ignition knob and runs to the side off the gas jet
What type \ make off cook top is it ??
Cheers Ken
-- Edited by Bukhouse on Monday 11th of March 2019 10:32:16 PM
Might be a long shot, but there is a screw behind the knob to adjust the flame. If yours lights as you say, is the flame very low? Pull the knob off and use a small phillips screwdriver in the hole to adjust.
We had a new van and all the burners were set very high, when you want to simmer something on low, it was too fierce, so I lit the flame and removed the knob and adjusted the flame down to the right height.
A trick a Plumber showed me.
Cheers Bob
Hi cjt55,
I have attached manual off your cooker
if you are handy and you want to fix your self I can run you through the steps if you like
the thermo couple can be brought from Dometic
they come in different lengths 220mm 300mm and 500mm and the cost is about $68
-- Edited by Bukhouse on Thursday 21st of March 2019 11:37:41 PM
-- Edited by Bukhouse on Thursday 21st of March 2019 11:45:07 PM
