Hi, looking for ideas to fix please. My shower tray fills quickly, bubbles and takes about 10 minutes to drain away. It only happens when I have the grey water hose connected, yet kitchen sink and bathroom basin drain freely. I have had the 25mm drain hose off and run the garden hose through it and there appears to be no blockage. My grey water hose is 32mm diameter in two five meter lengths and attaches to the caravan via a camlock firemans fitting. It makes no difference to my problem if I am using just the five metre length or joining to make ten metres. I have tried to level the caravan in various positions to create a few degrees slope front to rear, left to right and visa versa. My only thought is that there may be a non return valve in the line which has been installed back to front but I am unable to see one, although the last 100mm or so is hidden from view where it attaches to the drain hole in the shower tray, and if so why does the problem only exist when I attach the grey water hose? All a mystery to me. Thoughts please would be appreciated.
BaldEd said
07:29 AM Dec 21, 2019
Not enough info. Does you shower drain into a grey water tank? What sort of water trap do you have fitted beneath the shower tray? An S-trap? A Hepvo trap? No trap? Does your grey tank have a working breather tube fitted to its top?
As an aside my new Jayco came with a grey tank and breather tube factory fitted BUT a push-in plug in the internal wall of the manifold at the top of the grey tank had never been pushed-in prior to the breather tube being attached to the manifold - hence my grey tank never breathed and the grey tank was slow to fill and drain. I only discovered that when I removed the grey tank for re-positioning to better balance the caravan weight. Now the shower, sink and basin drain rapidly into the grey tank and it empties quickly.
ConsumerMan said
09:15 AM Dec 21, 2019
I dont have any more info. I do know there is no grey water tank, but I have no idea about water traps, S-traps or Hepvo trap. Sorry I asked a newbie question. Ill just return the caravan to the dealer and ask them to sort it.
Rob Driver said
09:23 AM Dec 21, 2019
ConsumerMan wrote:
I dont have any more info. I do know there is no grey water tank, but I have no idea about water traps, S-traps or Hepvo trap. Sorry I asked a newbie question. Ill just return the caravan to the dealer and ask them to sort it.
I have had my shower slow to drain and found that at a fitting on the outlet side of the shower there was a build up of hair and soap.
Now I know it wasnt my hair because when I look in the mirror I dont see any hair.
I pulled the fitting apart by undoing the clamp and with a piece of stiff wire (coat hanger) I hooked the hair out and now it flows fine.
Good luck with it
Regards
Rob
rgren2 said
10:24 AM Dec 21, 2019
Give a plumbers plunger a go, should clear any gunk through it.
Possum3 said
11:02 AM Dec 21, 2019
Sometimes piping on drain systems allows a build up of dry flakey (scale) - Cap over the outlet and fill drain lines with high concentrate chlorine bleach leave for a few hours, then flush - lines will be like new again.
Note:- most drains a slowed by putting on a hose to outlet - simple physics, extra air to displace with low flow water.
Bobdown said
12:56 PM Dec 21, 2019
Common problem with the sullage hose attached, no blockage really just a simple air lock, usually the drain you use most.
Try running at bit of water down the kitchen sink at same time, just to clear the air.
My hand basin in ensuite does the same thing, yet shower and kitchen fine, but then works ok with no sullage hose attached,
maybe the way the pipes are connected to each other, one doesn't seem to breathe as good.
Cheers Bob
Aus-Kiwi said
02:29 PM Dec 21, 2019
Could be hair in pipes ? Run some pipe cleaner through system . I run or boil HOT water every now and then with degreaser to clear pipes . Fill sink half full and plunge hand over outlet to pulse water down drain ?
Fester55 said
03:22 PM Dec 21, 2019
I had the same problem and it was probably caused by this hepvo.com/hepvo-waterless-valve/ which had been installed horizontally not allowing for drop.
I kept filling the tray and using a plunger. It took me a few goes but eventually I felt something give way and all is good now. I was surprised by the amount of gunk that kept back flowing when I was using the plunger.
Hope this helps.
Knight said
03:28 PM Dec 21, 2019
Might be a bloody green frog?
lol
ConsumerMan said
09:01 AM Dec 22, 2019
Thanks to most for your suggestions, I will try them all. The van is new with only 20 sleeps so far, so was hoping it is not a hair and gunk problem already.
Dougwe said
12:36 PM Dec 22, 2019
That's the problem then CM. Only 20 sleeps, you need 21 to come of age and it will work well.
Keep Safe on the roads and out there (Especially the festive seasons, but enjoy)
-- Edited by Dougwe on Sunday 22nd of December 2019 12:36:51 PM
BAZZA44 said
05:50 PM Dec 22, 2019
A Hepvo valve can be installed horizontally with a fall of about 3 to 4 mm, but the ribs must be down.
Barry
Treecrest said
03:14 PM Dec 24, 2019
Don't use the plumbers plunger as that turned my Hepvo valve inside out. My problem was a buildup of hair in the fitting I connected the drain hose to.
Bello said
05:26 PM Dec 26, 2019
I had the same problem, fixed when I fitted a air hole pipe to the tank to allow the flow to also push the air out.
Bello
mischief said
03:36 PM Dec 27, 2019
but he said he doesn't have a tank..
KevinC said
09:37 PM Dec 31, 2019
If your shower waste pipe sags at all, water stays in the low places and air stays in the high places and the system flows very slowly. Kitchen sinks and vanities rarely have this problem because of the height advantage, If you have any sagging pipes running from your shower, try to raise them so the water flows down as smoothly as possible. I'm thinking there won't be a blockage this early in the van's life. If your van is a Jayco, then a sagging pipe is normal and the dealer may not be able to recognize it. Spend time on your back under the van and I'm sure you'll find the problem.
KFT said
11:22 AM Jan 1, 2020
I think the majority of these problems are caused by the pipes and hoses being too small. Our van has 40mm waste plumbing and I use a 50mm drain hose. We have no issues whatsoever and our van is 9 yo and used often.
Happy new year everyone.
Frank
blissonwheels said
01:43 PM Jan 1, 2020
Gooday,
Try leaving one of the levers on the Camlok Fitting not closed, this will allow a little air into the pipe and it should flow smoothly, I sometimes have the same problem and that overcomes it.
BT50 Dave said
04:56 PM Jan 14, 2020
Hi,

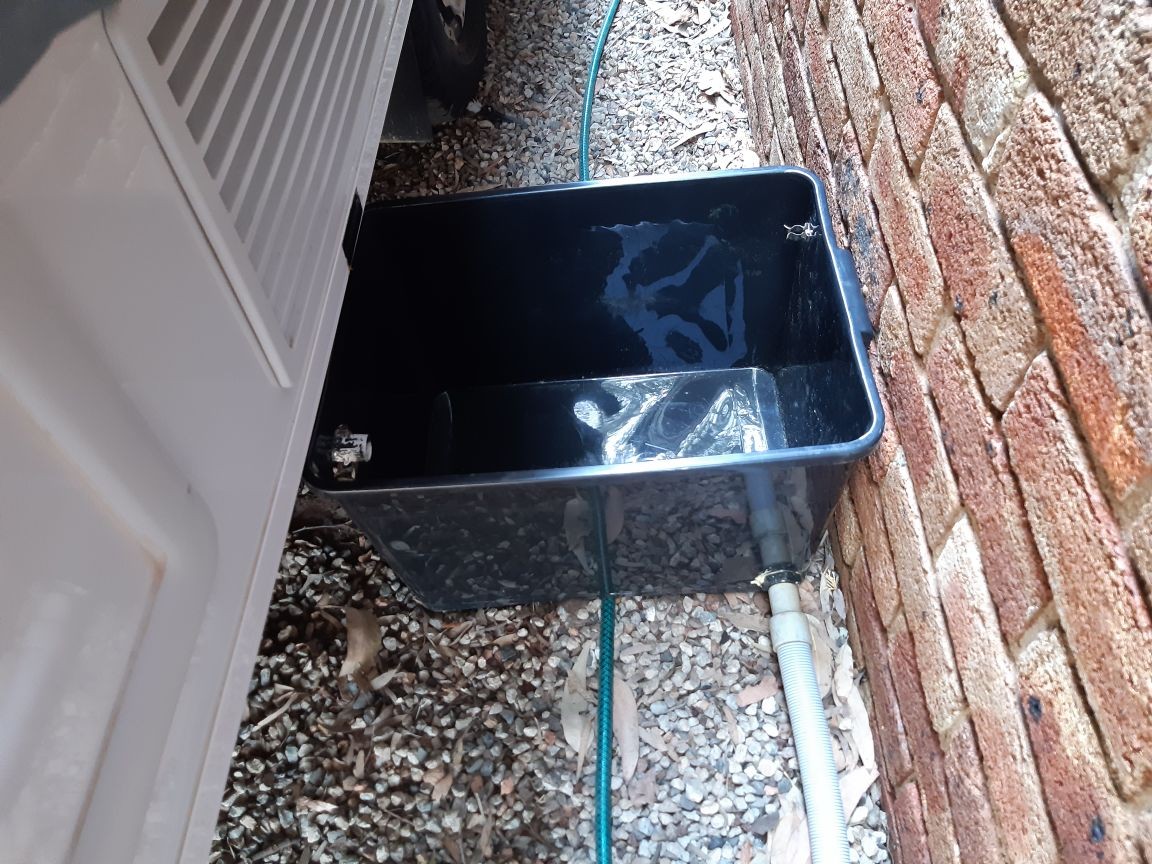

I solved this issue in our Aspire 555 by separating the two outlets i.e. the shower has its own outlet, everything else goes into the second outlet. I then have a 'waste bucket' that the shower outlet drains into with the grey water hose hooked to that. A normal shower for 2 people won't fill the bucket but then it has all night to drain out via the grey water hose. I have a cap for the outlet so it becomes leak proof and doubles up as the carrier for our water hose when we are on the move.
Hi, looking for ideas to fix please. My shower tray fills quickly, bubbles and takes about 10 minutes to drain away. It only happens when I have the grey water hose connected, yet kitchen sink and bathroom basin drain freely. I have had the 25mm drain hose off and run the garden hose through it and there appears to be no blockage. My grey water hose is 32mm diameter in two five meter lengths and attaches to the caravan via a camlock firemans fitting. It makes no difference to my problem if I am using just the five metre length or joining to make ten metres. I have tried to level the caravan in various positions to create a few degrees slope front to rear, left to right and visa versa. My only thought is that there may be a non return valve in the line which has been installed back to front but I am unable to see one, although the last 100mm or so is hidden from view where it attaches to the drain hole in the shower tray, and if so why does the problem only exist when I attach the grey water hose? All a mystery to me. Thoughts please would be appreciated.
As an aside my new Jayco came with a grey tank and breather tube factory fitted BUT a push-in plug in the internal wall of the manifold at the top of the grey tank had never been pushed-in prior to the breather tube being attached to the manifold - hence my grey tank never breathed and the grey tank was slow to fill and drain. I only discovered that when I removed the grey tank for re-positioning to better balance the caravan weight. Now the shower, sink and basin drain rapidly into the grey tank and it empties quickly.
I have had my shower slow to drain and found that at a fitting on the outlet side of the shower there was a build up of hair and soap.
Now I know it wasnt my hair because when I look in the mirror I dont see any hair.
I pulled the fitting apart by undoing the clamp and with a piece of stiff wire (coat hanger) I hooked the hair out and now it flows fine.
Good luck with it
Regards
Rob
Note:- most drains a slowed by putting on a hose to outlet - simple physics, extra air to displace with low flow water.
Try running at bit of water down the kitchen sink at same time, just to clear the air.
My hand basin in ensuite does the same thing, yet shower and kitchen fine, but then works ok with no sullage hose attached,
maybe the way the pipes are connected to each other, one doesn't seem to breathe as good.
Cheers Bob
I kept filling the tray and using a plunger. It took me a few goes but eventually I felt something give way and all is good now. I was surprised by the amount of gunk that kept back flowing when I was using the plunger.
Hope this helps.
lol
That's the problem then CM. Only 20 sleeps, you need 21 to come of age and it will work well.
Keep Safe on the roads and out there (Especially the festive seasons, but enjoy)
-- Edited by Dougwe on Sunday 22nd of December 2019 12:36:51 PM
Barry
Bello
Happy new year everyone.
Frank
Gooday,
Try leaving one of the levers on the Camlok Fitting not closed, this will allow a little air into the pipe and it should flow smoothly, I sometimes have the same problem and that overcomes it.
Hi,
I solved this issue in our Aspire 555 by separating the two outlets i.e. the shower has its own outlet, everything else goes into the second outlet. I then have a 'waste bucket' that the shower outlet drains into with the grey water hose hooked to that. A normal shower for 2 people won't fill the bucket but then it has all night to drain out via the grey water hose. I have a cap for the outlet so it becomes leak proof and doubles up as the carrier for our water hose when we are on the move.
Hope this helps.
Dave
