I have the pump disconnected, and am bench testing it, it pulses only once with power connected. Should it pulse, and keep pulsing until pressure is reached, or are the pulses sent from the heater control module, pressure controlled by the module?
thomas01 said
08:10 PM Apr 12, 2020
Ian,
I am no egg spurt on diesel heaters however I would egg specked that the pump is controlled by the heater module as it knows what setting you have it on. ie: low or high. This would determine how frequently the pump operates.
My opinion. I may be wrong. Hope you are having a happy Easter.
Robert.
iana said
09:26 PM Apr 12, 2020
Thanks Thomas01, I got the same answers from Wiki camps. So the pump must be OK. So fan in limp mode, but tests OK, sensors measure the correct ohms. Can't get to the igniter or screen. Fuel pump does not go, no error codes now. New heater?
Ozlad said
09:01 AM Apr 13, 2020
If it is only the pump you can pick up a new one on ebay for $25 or there abouts.
PeterInSa said
11:08 AM Apr 14, 2020
Ian, years ago had problems with the Glow plug and the pump would not go on our Snugger Heater, suggest you test the glow plug.
B4 buying a new unit would talk to Roger at Diesel Heat Australia, he has helped me in the past.
iana said
11:45 AM Apr 14, 2020
Have been in touch with Roger @ DHA, who says its most likely the wall mounted controller, have one on order. Will advise the results when it is fitted. Thanks.
I have the pump disconnected, and am bench testing it, it pulses only once with power connected. Should it pulse, and keep pulsing until pressure is reached, or are the pulses sent from the heater control module, pressure controlled by the module?
I am no egg spurt on diesel heaters however I would egg specked that the pump is controlled by the heater module as it knows what setting you have it on. ie: low or high. This would determine how frequently the pump operates.
My opinion. I may be wrong. Hope you are having a happy Easter.
Robert.
B4 buying a new unit would talk to Roger at Diesel Heat Australia, he has helped me in the past.
www.youtube.com/watch
Ken
Thanks for that update, do you have a pic to the controller
(I do not yet have a diesel heater)
Also, did you spot anything out of the ordinary, when you removed the controller

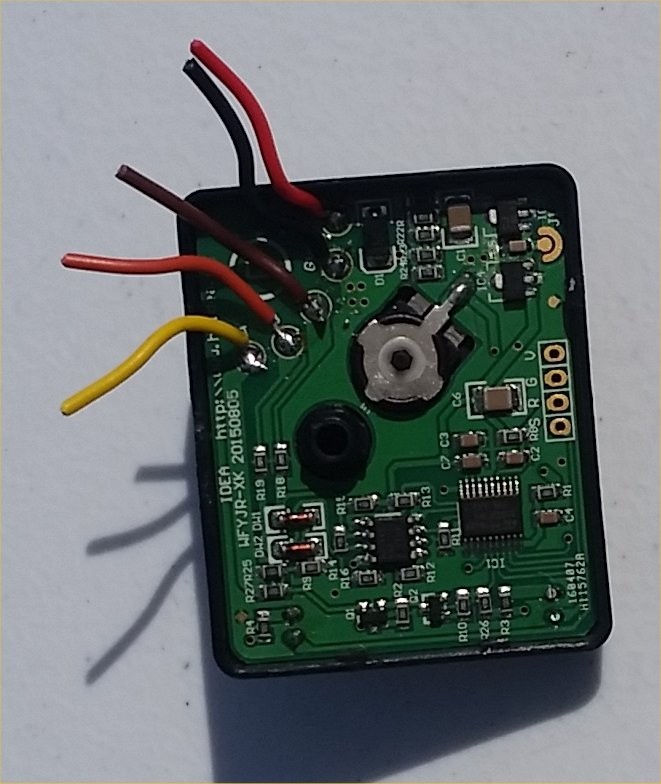

Tony Here tis. Too much surface mount tech for me to know if there is anything amiss.
I am also not a techie, and was not sure what you meant by the controller (I do not have a diesel heater yet)
I can now see the light, and can see that it is (some sort of), on/off and temperature setting switch, in other words, it is a controller
