How to fix coaxial to Clipsal

KenG said
09:43 PM Jul 13, 2020

Hi all
Can anyone help me know how to connect the coaxial cable to this clipsal tv external socket?

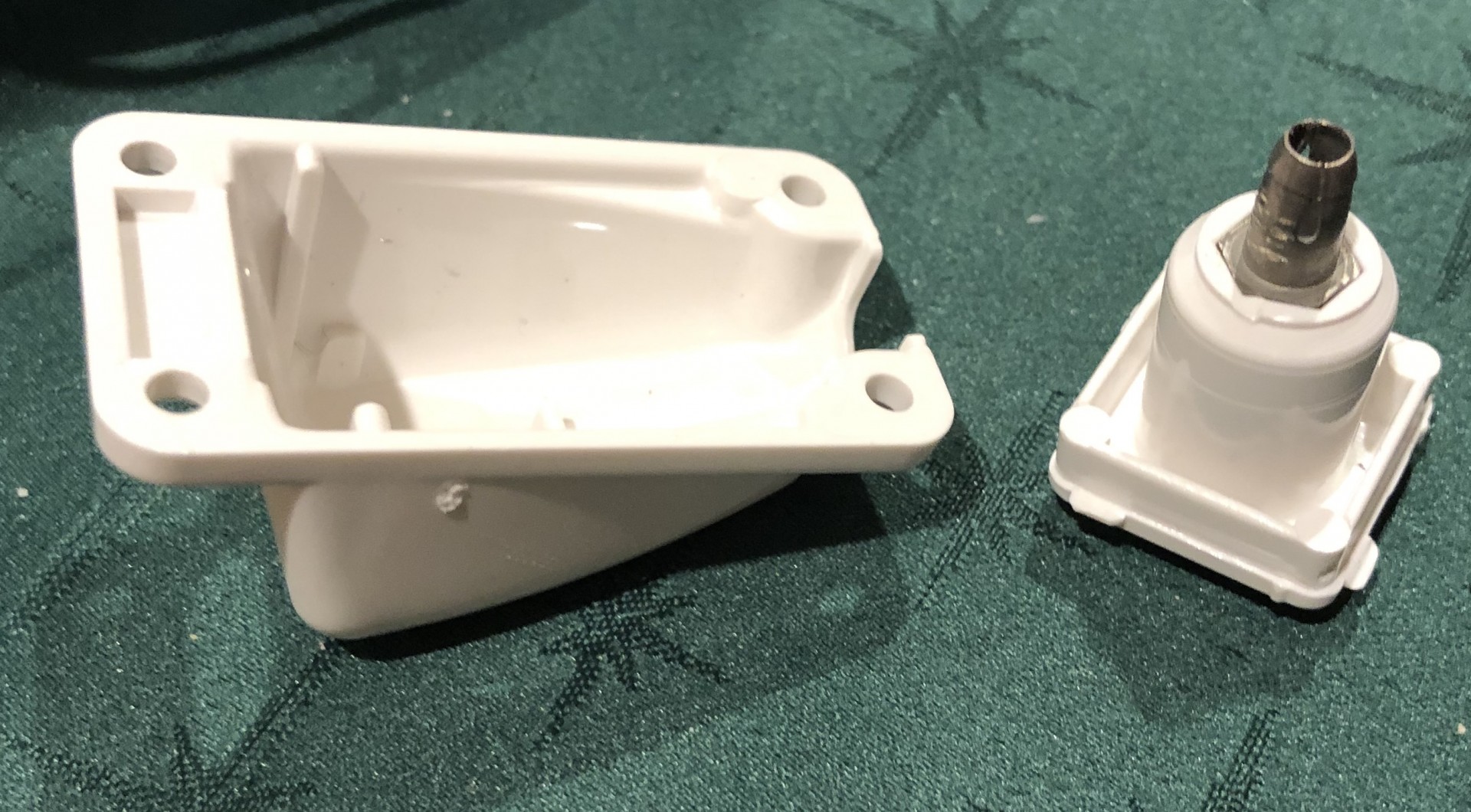

Also, how to assemble the square bit into the housing?
Can't find a video. Thanks heaps, Ken

Attached Files:


Possum3 said
10:15 PM Jul 13, 2020

Try download.schneider-electric.com/files

KenG said
10:44 PM Jul 13, 2020

The end fitting is the confusing part - its not the usual terminate and screw in

Possum3 said
11:03 PM Jul 13, 2020

It is not meant to be used as a permanent means of attaching a cable to socket - it's meant as an external plug in.

Whenarewethere said
11:44 PM Jul 13, 2020

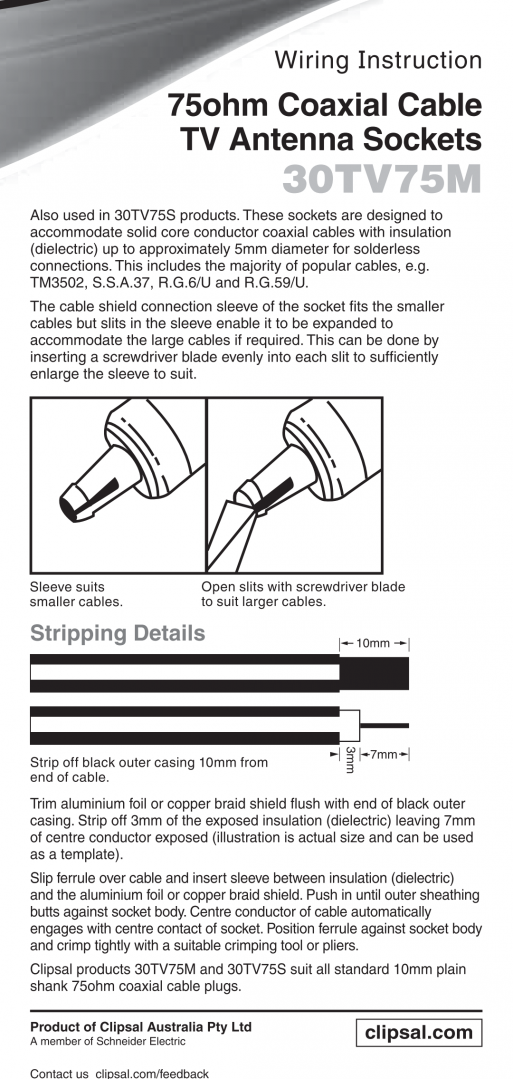

https://download.schneider-electric.com/files?p_Doc_Ref=CLPDOC_W0000561&p_File_Ext=.PDF

Attached Files:


Possum3 said
07:33 AM Jul 14, 2020

Sorry Ken - "Whenarewethere"s post makes it clear - As usual I had the Bull by the tits - I didn't grasp your meaning until I saw his post.

valiant81 said
10:27 AM Jul 14, 2020

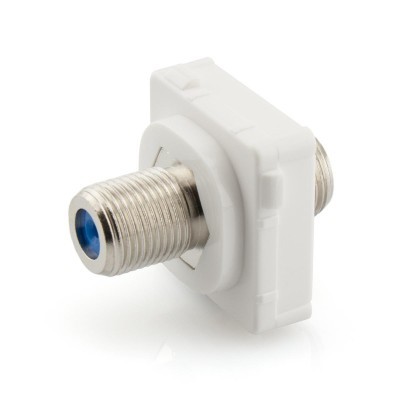

Hi all; And another way to connect coax cable to a outlet, this way you would also be digitally correct.

-- Edited by valiant81 on Tuesday 14th of July 2020 10:28:01 AM

Attached Files:


blaze said
11:41 AM Jul 14, 2020

valiant81 wrote:
Hi all; And another way to connect coax cable to a outlet, this way you would also be digitally correct.

-- Edited by valiant81 on Tuesday 14th of July 2020 10:28:01 AM

and only use compression fittings, do it right the first time

cheers

blaze
